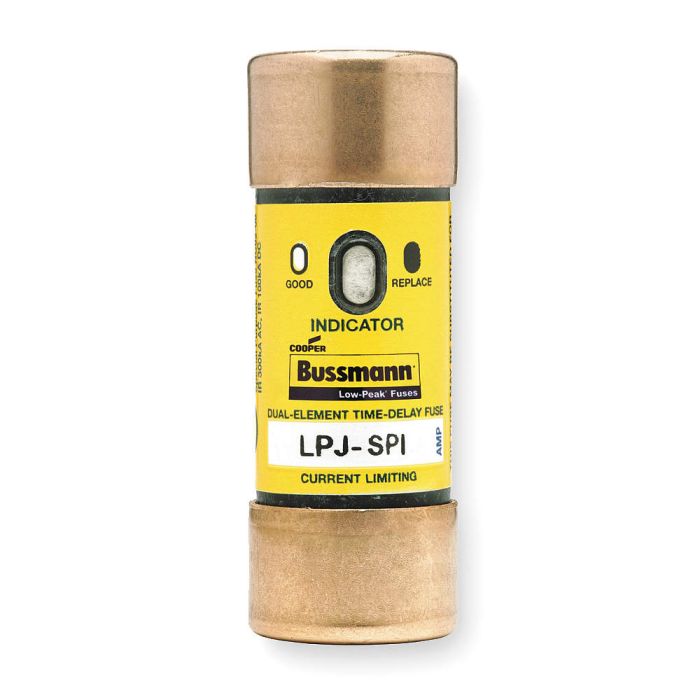

LPJ-40SPI

Description:

• 40 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay - 10 Second (Minimum) at 500% Rating
• Dual Element
• Indicating
• Physical Size: 1.06" x 2.38"
• High Degree of Current Limitation
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, 200,000 AIR, Class J per CSA 22.2 No. 248.8
• Class 1422-02, File 53787
•

• Related Products:


• Ultrasafe Fuse Holders
• 1 Pole: US6J1; 1 Pole with Indicator:US6J1I
• 2 Pole: US6J2; 2 Pole with Indicator:US6J2I
• 3 Pole: US6J3; 3 Pole with Indicator:US6J3I


• Fuse Blocks
• Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
• 2 Pole: 60602J 3 Pole: 60603J
• Spring Reinforced, Box Lugs (Al/Cu #2-14)
• Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
• Spring Reinforced, Box (Cu #4-14)
• 3 Pole: 60658J


• Fuse Reducers
• 200 Amp to 60 Amp: J266
• 100 Amp to 60 Amp: J166
