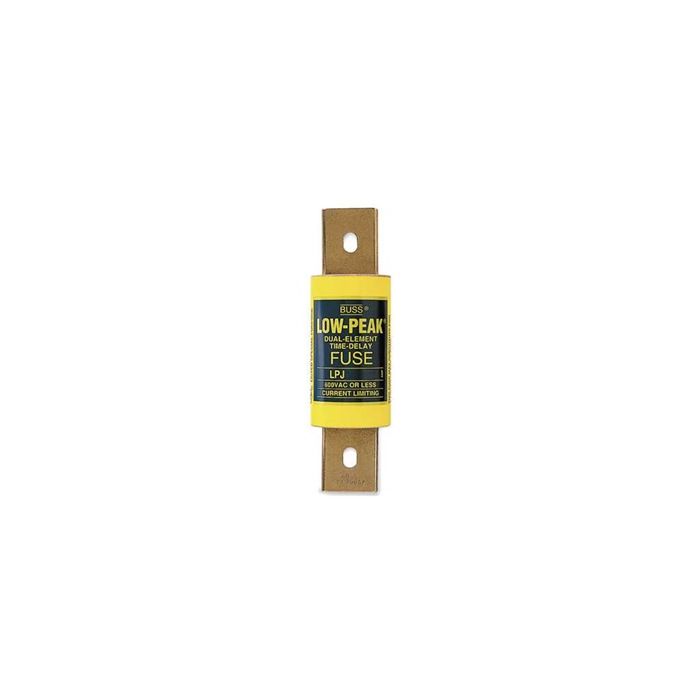

LPJ-250SPI

Description:

• 250 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay - 10 Second (Minimum) at 500% Rating
• Dual Element
• Indicating
• Physical Size: 2.11" x 7.126"
• High Degree of Current Limitation
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 20,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class J per CSA C22.2 No. 248.8,
• Class 1422-02, File 53787
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
• 1 Pole: 64001J 3 Pole: 64003J
• Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
• 3 Pole: 64033J
• Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
• 3 Pole: 64063J


• Fuse Reducers
• 600 Amp to 400 Amp: J646
