LLSRK-225ID
$195.69
Out of stock
SKU
LLSRK-225ID

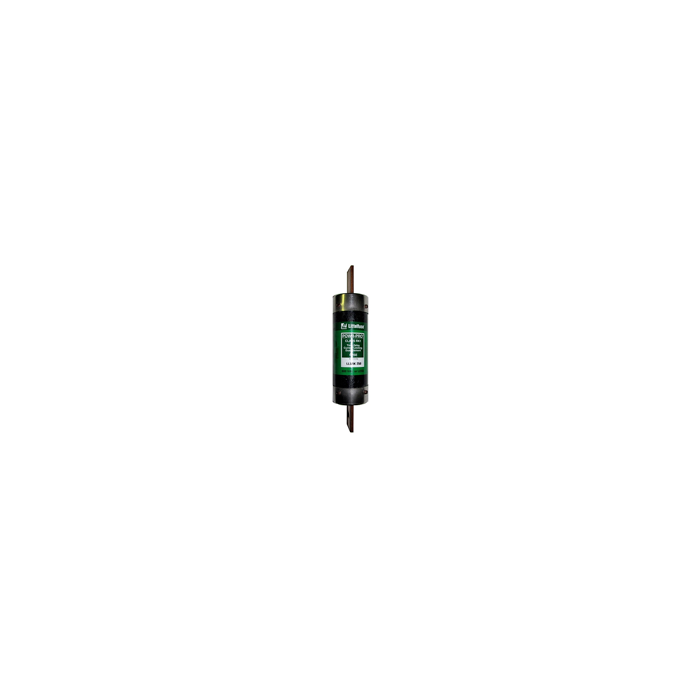

LLSRK 225 Amp, 600V, Class RK1, Littelfuse LLSRK-225ID, LLSRK 225A | aka: Time Delay LLSRK-225ID, Littel fuse LLSRK-225ID, UPC: 079458060676
LLSRK 225 Amp, 600V, Class RK1, Littelfuse LLSRK-225ID, LLSRK 225A | aka: Time Delay LLSRK-225ID, Littel fuse LLSRK-225ID, UPC: 079458060676
Description:
- 225 Amps, 600 Volts AC
- UL Class RK1 Fuse w/ Indicator
- Time Delay
- Dual Element
- Physical Size: 2 19/32" x 11 5/8"
- Extremely Current Limiting
- IEC Type 2 protection to IEC and NEMA Type Motor Starters
- For Use with All General Purpose Circuits
- AC Voltage Rating: 600
- DC Voltage Rating: 300
- Interrupting Rating: 200,000 AIC @ 600VAC
- DC Interrupting Rating: 20,000 AIC @ 300VDC
- Related Products:
- Fuse Blocks
- Box Side Clip (Al/Cu 1000-250kcmil)
- 1 Pole: 64001R 3 Pole: 64003R
- Box Side Clip (Al/Cu 2 Hole - 350kcmil-#6)
- 3 Pole: 64033R
- Fuse Reducers
- 600 Amp to 400 Amp: R642
