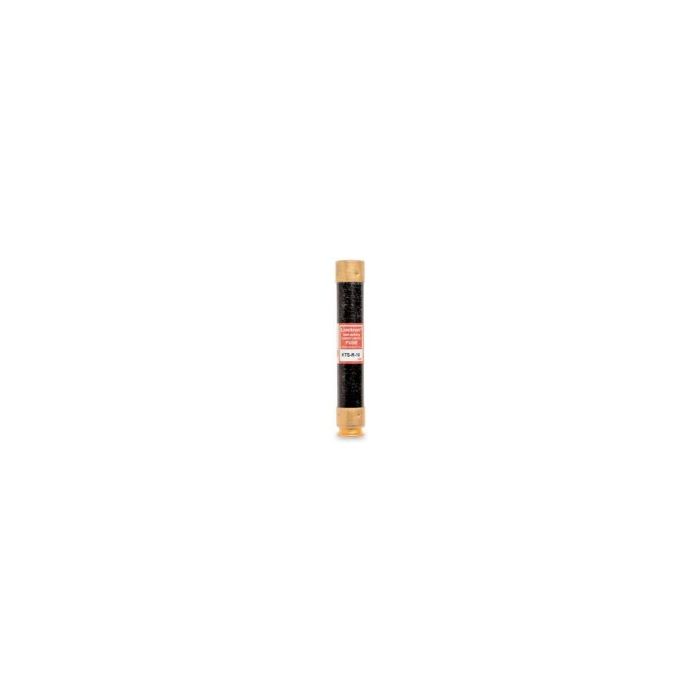

KTS-R-50
$60.84
Stock Quantity:
33
SKU
KTS-R-50
KTS-R 50 Amp, 600V, Class RK-1, Bussmann KTS-R-50, KTS-R 50A | aka: Limitron KTS-R-50, Cooper Bussmann KTS-R-50, UPC: 051712417112
KTS-R 50 Amp, 600V, Class RK-1, Bussmann KTS-R-50, KTS-R 50A | aka: Limitron KTS-R-50, Cooper Bussmann KTS-R-50, UPC: 051712417112
Description:
- 50 Amps, 600 Volts AC
- Fast Acting Fuse
- Single Element
- Current Limiting
- Physical Size: 1 1/16" x 5 1/2"
- LIMITRON® Fast Acting Fuse
- Suited for Circuits and Loads with No Heavy Surge Currents
- Tube Material: Glass Melamine
- End Caps: 70/30 Brass
- AC Voltage Rating: 600
- Interrupting Rating: 200,000 AIC RMS @ 600VAC
- UL Listed, Std. 248-12, Class RK1, Guide JDDZ, File E54273
- CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787
- Related Products:
- Fuse Blocks
- Box Lugs (Al/Cu #2-14) 1 Pole: 60606R 2 Pole: 60607R 3 Pole: 60608R
- Screw Connector (Cu #10-14) 3 Pole: 60658R
- Pressure Plate (Cu #10-14) 3 Pole: 60328R
- Fuse Reducers
- 100 Amp to 60 Amp: R166
- 200 Amp to 60 Amp: R266
