JTD-045
$23.79
Stock Quantity:
616
SKU
JTD-045

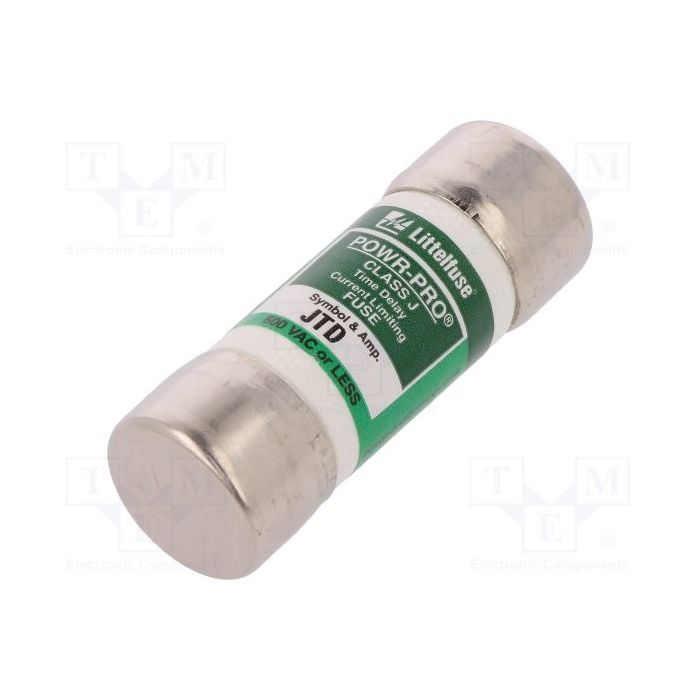

JTD 45 Amp, 600V, Class J, Littelfuse JTD-045, JTD 45A | aka: Time Delay JTD-045, Littel fuse JTD-045, UPC: 07945820218
JTD 45 Amp, 600V, Class J, Littelfuse JTD-045, JTD 45A | aka: Time Delay JTD-045, Littel fuse JTD-045, UPC: 07945820218
Description:
- 45 Amps, 600 Volts AC
- UL Class J Fuse
- Time Delay
- Dual Element
- Physical Size: 1 1/16" x 2 3/8"
- Current Limiting
- IEC Type 2 Protection
- AC Voltage Rating: 600
- DC Voltage Rating: 300
- Interrupting Rating: 200,000 AIC @ 600VAC
- DC Interrupting Rating: 20,000 AIC
- UL Listed (File: E81895) CSA Certified (File: LR29862)
- Related Products:
- Ultrasafe Fuse Holders
- 1 Pole: US6J1; 1 Pole with Indicator:US6J1I
- 2 Pole: US6J2; 2 Pole with Indicator:US6J2I
- 3 Pole: US6J3; 3 Pole with Indicator:US6J3I
- Fuse Blocks
- Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
- 2 Pole: 60602J 3 Pole: 60603J
- Spring Reinforced, Box Lugs (Al/Cu #2-14)
- Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
- Spring Reinforced, Box (Cu #4-14)
- 3 Pole: 60658J
- Fuse Reducers
- 200 Amp to 60 Amp: J266
- 100 Amp to 60 Amp: J166
