HSJ40
$74.79
Out of stock
SKU
HSJ40

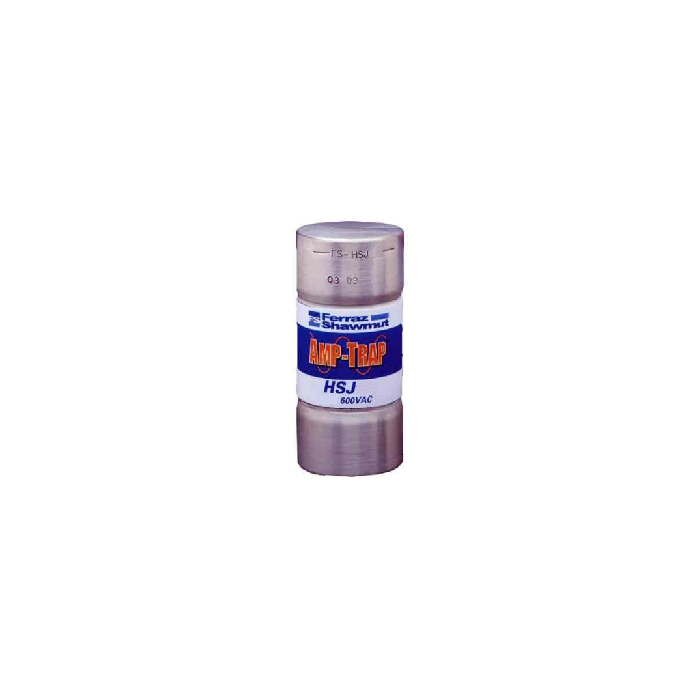

HSJ 40 Amp, 600V, Class J, Ferraz HSJ40, HSJ 40A | aka: Mersen HSJ40, Ferraz Shawmut HSJ40, UPC: 782001329518
HSJ 40 Amp, 600V, Class J, Ferraz HSJ40, HSJ 40A | aka: Mersen HSJ40, Ferraz Shawmut HSJ40, UPC: 782001329518
Description:
- 40 Amps, 600 Volts AC
- UL Class J Fuse
- High Speed J
- Designed for Solid State Motor Controllers
- Current Limiting
- Excellent Cycling Ability
- Compact Size
- Physical Size: 1 1/16" x 2 3/8"
- Designed for Protection of Power Semiconductors
- AC Voltage Rating: 600
- DC Voltage Rating: 500
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- UL Listed to Standard 248-8 File E2137
- DC Listed to UL Standard 248
- CSA Certified to Standard C22.2 No. 248.8
- Related Products:
- Ultrasafe Fuse Holders
- 1 Pole: US6J1; 1 Pole with Indicator:US6J1I
- 2 Pole: US6J2; 2 Pole with Indicator:US6J2I
- 3 Pole: US6J3; 3 Pole with Indicator:US6J3I
- Fuse Blocks
- Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
- 2 Pole: 60602J 3 Pole: 60603J
- Spring Reinforced, Box Lugs (Al/Cu #2-14)
- Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
- Spring Reinforced, Box (Cu #4-14)
- 3 Pole: 60658J
- Fuse Reducers
- 200 Amp to 60 Amp: J266
- 100 Amp to 60 Amp: J166
