FXD63B175
$1,068.19
Stock Quantity:
60
SKU
FXD63B175

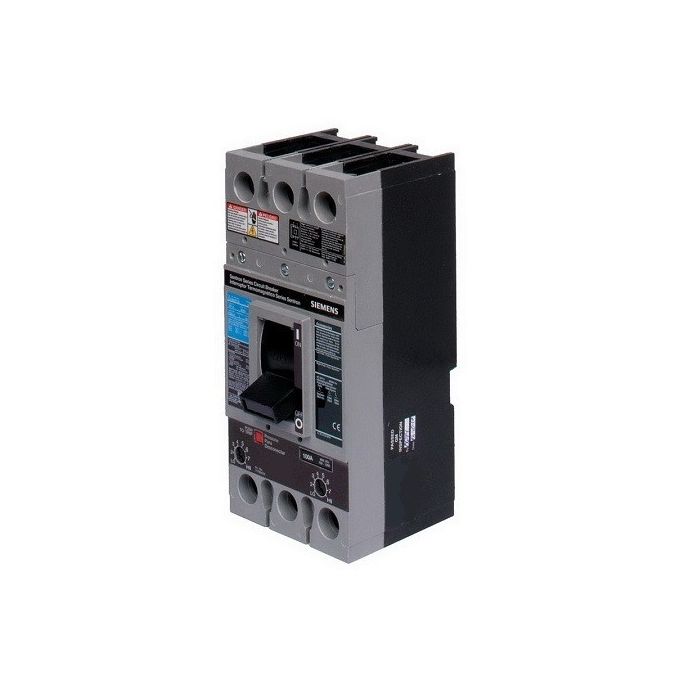

FXD 175 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD63B175, FXD 175A | aka: ITE FXD63B175, ITE Siemens FXD63B175, UPC: 783643211261
FXD 175 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD63B175, FXD 175A | aka: ITE FXD63B175, ITE Siemens FXD63B175, UPC: 783643211261
Description:
- Siemens FXD63B175, FXD 175 Amp, 600V, Circuit Breaker Trip Unit, FXD 175A | aka: ITE FXD63B175, ITE Siemens FXD63B175, UPC: 783643211261
- Bolt On Mounting
- Frame Type: FXD
- Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
- Weight: 9lbs.
- Wire Size: Lug Kit TA1FD350A (#6 AWG to 350 Kcmil)
- FXD, 175A, 600V AC, 3 Pole
- Interrupting Rating at 240 Volts AC: 65,000
- Interrupting Rating at 480 Volts AC: 35,000
- Interrupting Rating at 600 Volts AC: 22,000
- Thermal Magnetic
