FXD63B110
$1,068.19
Stock Quantity:
5
SKU
FXD63B110

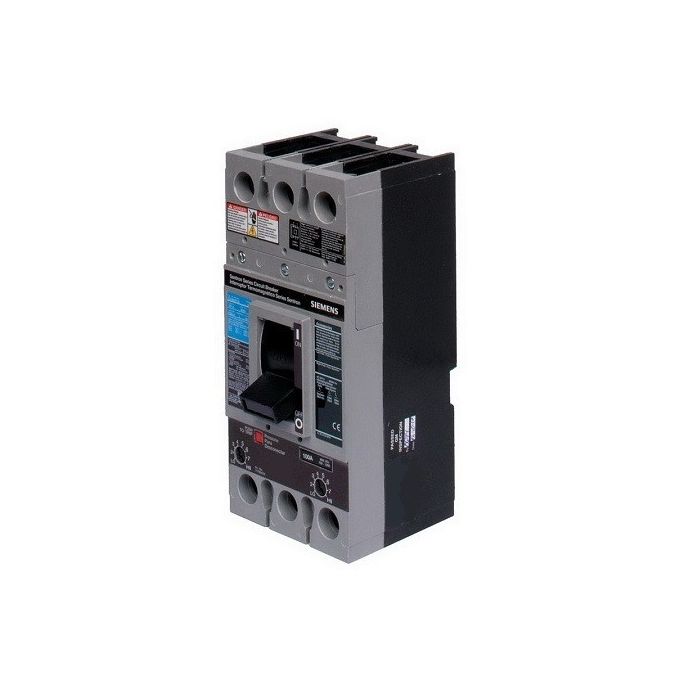

FXD 110 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD63B110, FXD 110A | aka: ITE FXD63B110, ITE Siemens FXD63B110, UPC: 783643211230
FXD 110 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD63B110, FXD 110A | aka: ITE FXD63B110, ITE Siemens FXD63B110, UPC: 783643211230
Description:
- Siemens FXD63B110, FXD 110 Amp, 600V, Circuit Breaker Trip Unit, FXD 110A | aka: ITE FXD63B110, ITE Siemens FXD63B110, UPC: 783643211230
- Bolt On Mounting
- Frame Type: FXD
- Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
- Weight: 9lbs.
- Wire Size: Lug Kit TA1FD350A (#6 AWG to 350 Kcmil)
- FXD, 110A, 600V AC, 3 Pole
- Interrupting Rating at 240 Volts AC: 65,000
- Interrupting Rating at 480 Volts AC: 35,000
- Interrupting Rating at 600 Volts AC: 22,000
- Thermal Magnetic
