FXD62B150
$950.09
Stock Quantity:
8
SKU
FXD62B150

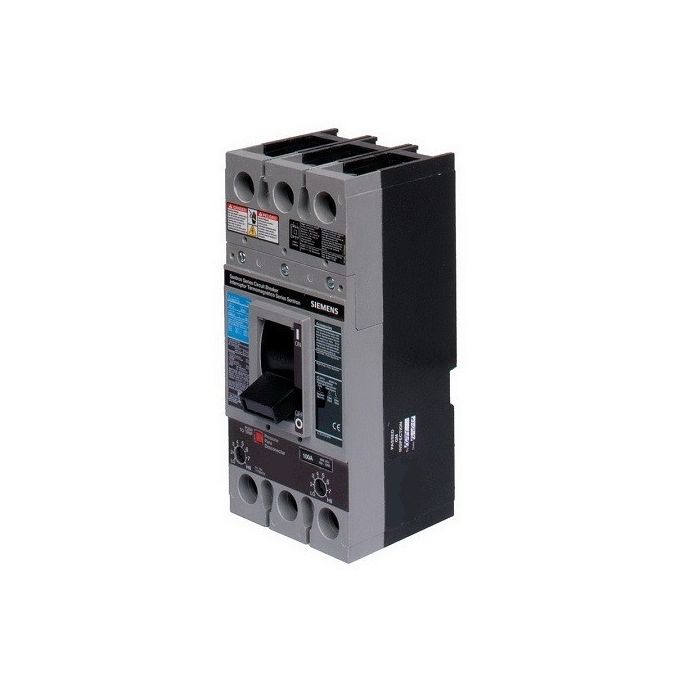

FXD 150 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B150, FXD 150A | aka: ITE FXD62B150, ITE Siemens FXD62B150, UPC: 783643211148
FXD 150 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B150, FXD 150A | aka: ITE FXD62B150, ITE Siemens FXD62B150, UPC: 783643211148
Description:
- Siemens FXD62B150, FXD 150 Amp, 600V, Circuit Breaker Trip Unit, FXD 150A | aka: ITE FXD62B150, ITE Siemens FXD62B150, UPC: 783643211148
- Bolt On Mounting
- Frame Type: FXD
- Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
- Weight: 9lbs.
- Wire Size: Lug Kit TA1FD350A (#6 AWG to 350 Kcmil)
- FXD, 150A, 600V AC, 2 Pole
- Interrupting Rating at 240 Volts AC: 65,000
- Interrupting Rating at 480 Volts AC: 35,000
- Interrupting Rating at 600 Volts AC: 22,000
- Thermal Magnetic
