FXD62B125
$950.09
Stock Quantity:
8
SKU
FXD62B125

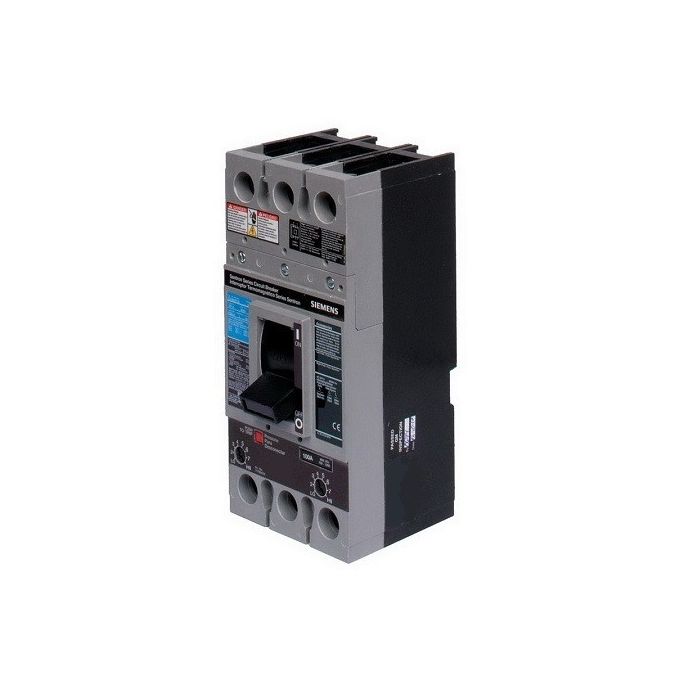

FXD 125 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B125, FXD 125A | aka: ITE FXD62B125, ITE Siemens FXD62B125, UPC: 783643211131
FXD 125 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B125, FXD 125A | aka: ITE FXD62B125, ITE Siemens FXD62B125, UPC: 783643211131
Description:
- Siemens FXD62B125, FXD 125 Amp, 600V, Circuit Breaker Trip Unit, FXD 125A | aka: ITE FXD62B125, ITE Siemens FXD62B125, UPC: 783643211131
- Bolt On Mounting
- Frame Type: FXD
- Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
- Weight: 9lbs.
- Wire Size: Lug Kit TA1FD350A (#6 AWG to 350 Kcmil)
- FXD, 125A, 600V AC, 2 Pole
- Interrupting Rating at 240 Volts AC: 65,000
- Interrupting Rating at 480 Volts AC: 35,000
- Interrupting Rating at 600 Volts AC: 22,000
- Thermal Magnetic
