FEB-11-11-BA

$48.99
Out of stock
SKU
FEB-11-11-BA

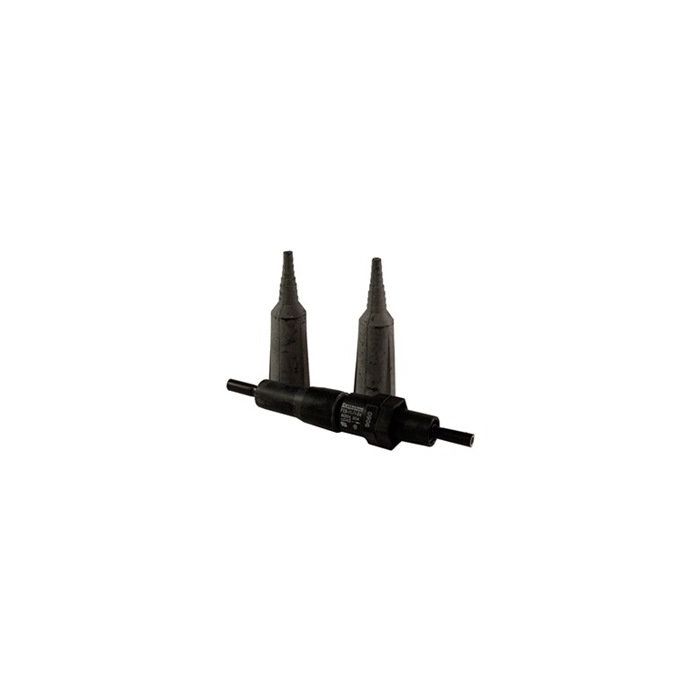

FEB, 600V, Fuse Holder, Ferraz FEB-11-11-BA | aka: Mersen FEB-11-11-BA, Ferraz Shawmut FEB-11-11-BA, UPC: 782001300692
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

FEB, 600V, Fuse Holder, Ferraz FEB-11-11-BA | aka: Mersen FEB-11-11-BA, Ferraz Shawmut FEB-11-11-BA, UPC: 782001300692


Description:

  • 30 Amps Max, 600 Volts AC
  • Breakaway Version Single Pole Fuse Holder
  • For Use with Midget Fuse
  • Cu Crimp Terminal
  • (1) #8 - #12 or (2) #12 - #14
  • For Use with ATQ, ATM, TRM, OTM, GGU, GFN, A60Q
  • Colored O Rings for Quick Detection
  • Breakaway version equipped with breakaway stud, breakaway boot, and insulating boots for both line and load sides
  • Accepts Solid and Stranded Wire
  • AC Voltage Rating: 600
  • DC Voltage Rating: 600
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • UL Listed Class CC Guide IZLT, File E52283
  • UL Recognized Component Midget Guide IZLT2, File E52283
  • CSA Certified Class CC and Midget Class 6225, File 32169
Data Sheet
