JLLS-002

$19.34
Stock Quantity: 4
SKU
JLLS-002

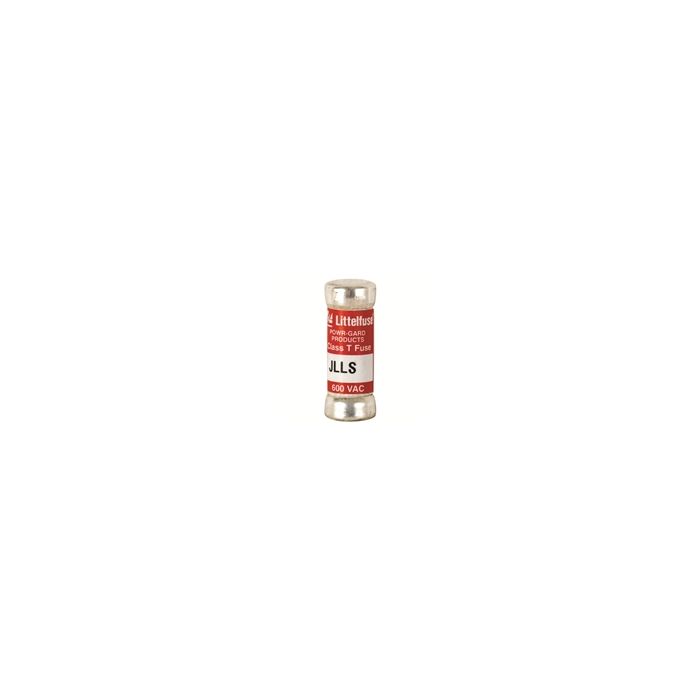

JLLS 2 Amp, 600V, Class T, Littelfuse JLLS-002, JLLS 2A | aka: Very Fast Acting JLLS-002, Littel fuse JLLS-002, UPC: 079458190410
Allfuses.com is not an authorized distributor of Littelfuse products

JLLS 2 Amp, 600V, Class T, Littelfuse JLLS-002, JLLS 2A | aka: Very Fast Acting JLLS-002, Littel fuse JLLS-002, UPC: 079458190410


Description:

  • 2 Amps, 600 Volts AC
  • UL Class T Fuse
  • Very Fast Acting
  • Current Limiting
  • Physical Size: 9/16" x 1 1/2"
  • Compact Design
  • Variable Speed Drive Protection
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • RoHS Compliant
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306T 2 Pole: 60307T 3 Pole: 60308T
  • Pressure Plate (Cu #10-14)
  • 1 Pole: 60326T 2 Pole: 60327T 3 Pole: 60328T

Data Sheet
