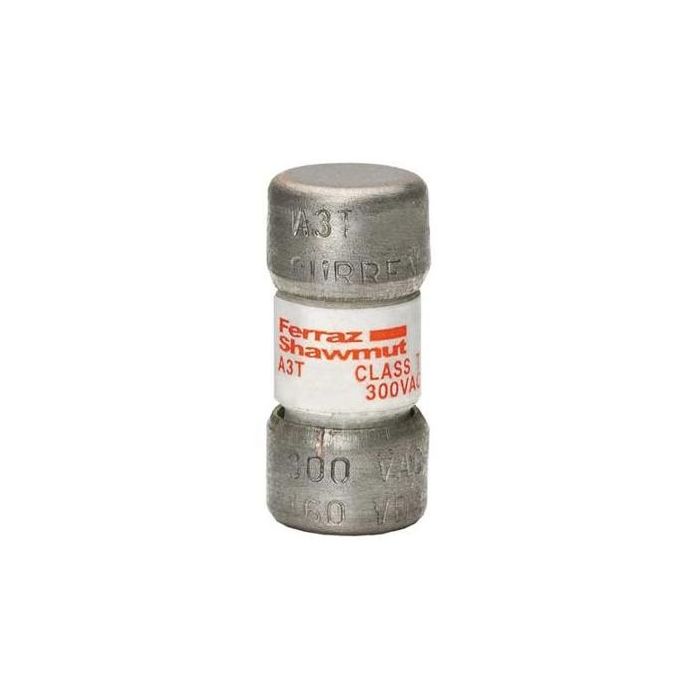

A3T25

Description:

• 25 Amps, 300 Volts AC
• UL Class T Fuse
• Fast Acting
• Extremely Current Limiting
• Physical Size: 0.41" x 0.88"
• AC Voltage Rating: 300
• DC Voltage Rating: 160
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 50,000 AIC
• Small Physical Design for Greater Design Flexibility
• Blade Stamped Catalog Numbers for Permanent Identification
• Unique Dimensions Prevent Replacement by Other Fuse Classes
• UL listed to standard 248-15 File E2137
• CSA certified to standard C22.2 no. 248.15
• DC listed to UL standard 248


• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu #2-14)
• 1 Pole: 30306T 2 Pole: 30307T 3 Pole: 30308T
• Pressure Plate (Cu #10-14)
• 1 Pole: 30326T 2 Pole: 30327T 3 Pole: 30328T
