A3T10
$11.49
Out of stock
SKU
A3T10

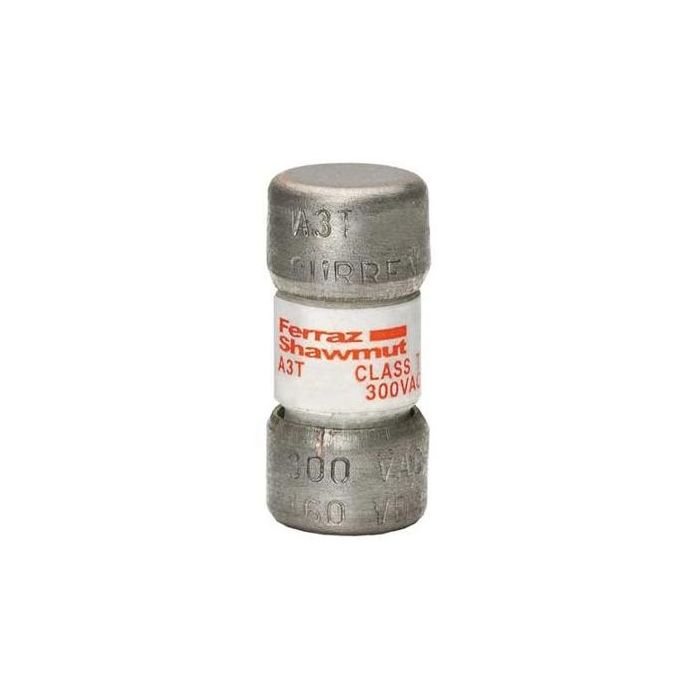

A3T 10 Amp, 300V, Class T, Ferraz A3T10, A3T 10A | aka: Mersen A3T10, Ferraz Shawmut A3T10, UPC: 782001890056
A3T 10 Amp, 300V, Class T, Ferraz A3T10, A3T 10A | aka: Mersen A3T10, Ferraz Shawmut A3T10, UPC: 782001890056
Description:
- 10 Amps, 300 Volts AC
- UL Class T Fuse
- Fast Acting
- Extremely Current Limiting
- Physical Size: 0.41" x 0.88"
- AC Voltage Rating: 300
- DC Voltage Rating: 160
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 50,000 AIC
- Small Physical Design for Greater Design Flexibility
- Blade Stamped Catalog Numbers for Permanent Identification
- Unique Dimensions Prevent Replacement by Other Fuse Classes
- UL listed to standard 248-15 File E2137
- CSA certified to standard C22.2 no. 248.15
- DC listed to UL standard 248
- Related Products:
- Fuse Blocks
- Box Lugs (Al/Cu #2-14)
- 1 Pole: 30306T 2 Pole: 30307T 3 Pole: 30308T
- Pressure Plate (Cu #10-14)
- 1 Pole: 30326T 2 Pole: 30327T 3 Pole: 30328T
