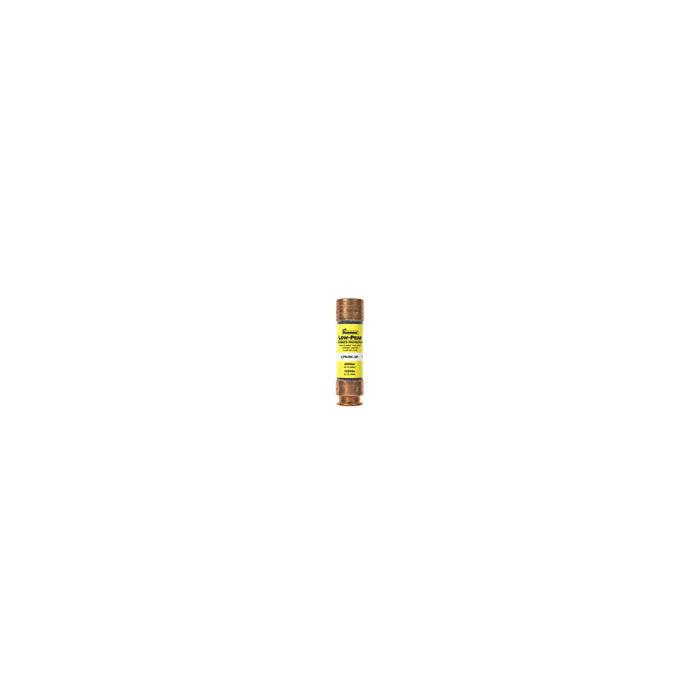

LPN-RK-25SP

Description:

• 25 Amps, 250 Volts AC
• UL Class RK1
• Low-Peak™ Fuse
• Time Delay (Minimum 8 Seconds)
• Dual Element
• Physical Size: 0.56" x 2"
• Current Limiting for Maximum Short Circuit Protection
• High Inrush Current Motor Protection
• AC Voltage Rating: 250
• DC Voltage Rating: 125
• Interrupting Rating: 300,000 AIC RMS @ 250VAC
• DC Interrupting Rating: 100,000 AIC
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
•

• Related Products:


• Fuse Blocks
• Box Side Clip (Al/Cu 1000 - 250kcmil)
3 Pole: 24033R


• Fuse Reducers
600 Amp to 400 Amp: R642
