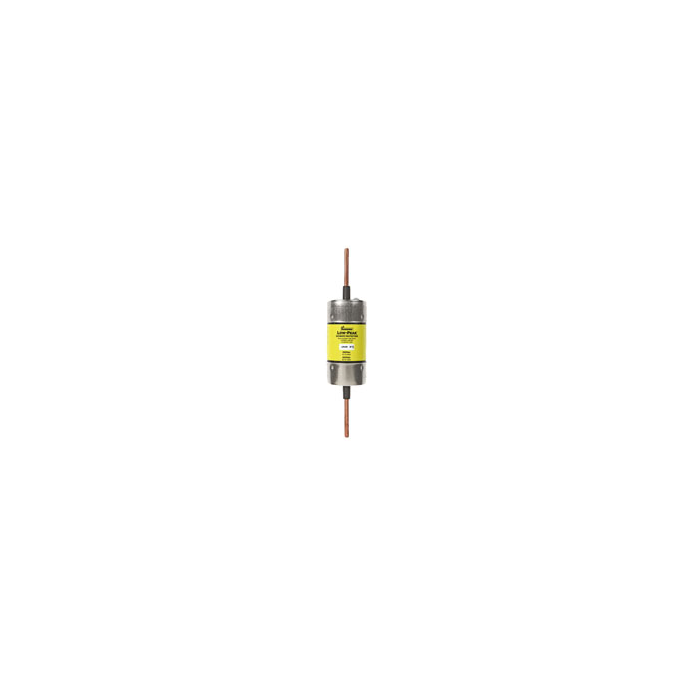

LPN-RK-125SP

Description:

• 125 Amps, 250 Volts AC
• UL Class RK1
• Low-Peak™ Fuse
• Time Delay (Minimum 10 Seconds)
• Dual Element
• Physical Size: 1.61" x 7.13"
• Current Limiting for Maximum Short Circuit Protection
• High Inrush Current Motor Protection
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• Interrupting Rating: 300,000 AIC RMS @ 250VAC
• DC Interrupting Rating: 100,000 AIC
• CE, UL Listed?Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
•

• Related Products:


• Fuse Blocks
• Box Side Clip (Al/Cu 350kcmil-#6)
1 Pole: 22001R 3 Pole: 22003R


• Fuse Reducers
• 400 Amp to 200 Amp: R422
• 600 Amp to 200 Amp: R622
