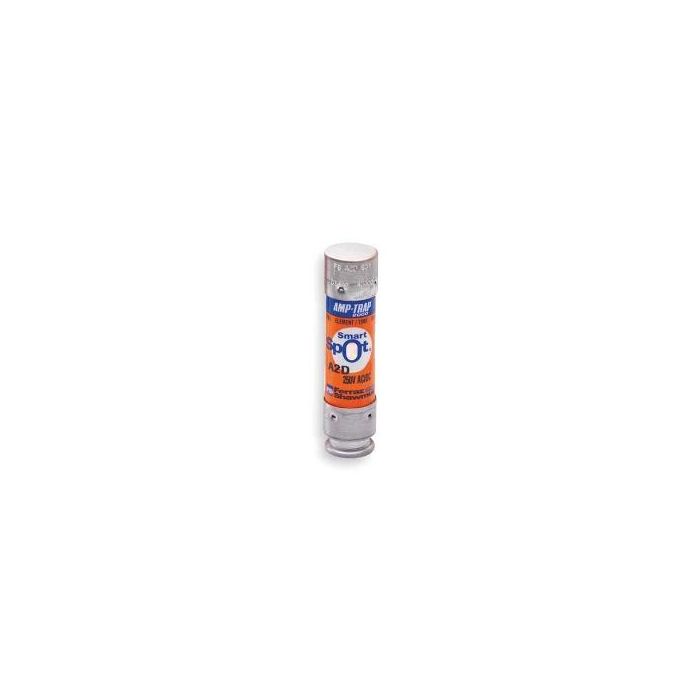

A2D25R

Description:

• 25 Amps, 250 Volts AC
• UL Class RK1 Fuse
• Time Delay
• Smart Spot
• Physical Size: 9/16" x 2"
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Fiberglass Body
• Arc Flash Mitigating; Plated Terminals
• UL listed to standard 248-12 File E2137
• DC listed to UL standard 248
• CSA certified to standard C22.2 No. 248.12
•

• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu #2-14)
• Adder: 20305R 1 Pole: 20306R 2 Pole: 20307R 3 Pole: 20308R
• Screw Connector (Cu #10-14)
• 1 Pole: 20316R 2 Pole: 20317R 3 Pole: 20318R
• Pressure Plate (Cu #10-14)
• 1 Pole: 20326R 2 Pole: 20327R 3 Pole: 20328R


• Fuse Reducers
• 60 Amp to 30 Amp: R632
• 100 Amp to 30 Amp: R132
