A4BY1200
$482.09
Stock Quantity:
246
SKU
A4BY1200

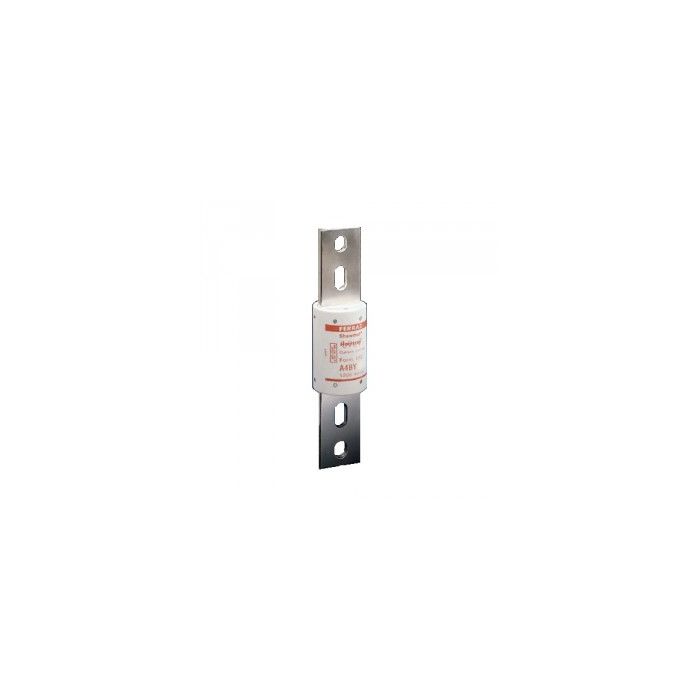

A4BY 1200 Amp, 600V, Class L, Ferraz A4BY1200, A4BY 1200A | aka: Mersen A4BY1200, Ferraz Shawmut A4BY1200, UPC: 782001939168
A4BY 1200 Amp, 600V, Class L, Ferraz A4BY1200, A4BY 1200A | aka: Mersen A4BY1200, Ferraz Shawmut A4BY1200, UPC: 782001939168
Description:
- 1200 Amps, 600 Volts AC
- UL Class L Fuse
- 4 Second Time Delay
- Current Limiting
- Physical Size: 2 1/2" x 10 3/4"
- AC Voltage Rating: 600
- DC Voltage Rating: 300
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Blade Stamped Catalog Numbers for Permanent Identification
- Unique Dimensions Prevent Replacement by Other Fuse Classes
- Glass Melamine Body and Plated Terminals for Harsh Environments
- UL listed to standard 248-10 (601-6000A) File E2137
- CSA certified to standard C22.2 No. 248.10 (601-6000A)
- Self-certified for DC per UL248 (601-6000A)
