A4BT1800
$625.14
Stock Quantity:
5
SKU
A4BT1800

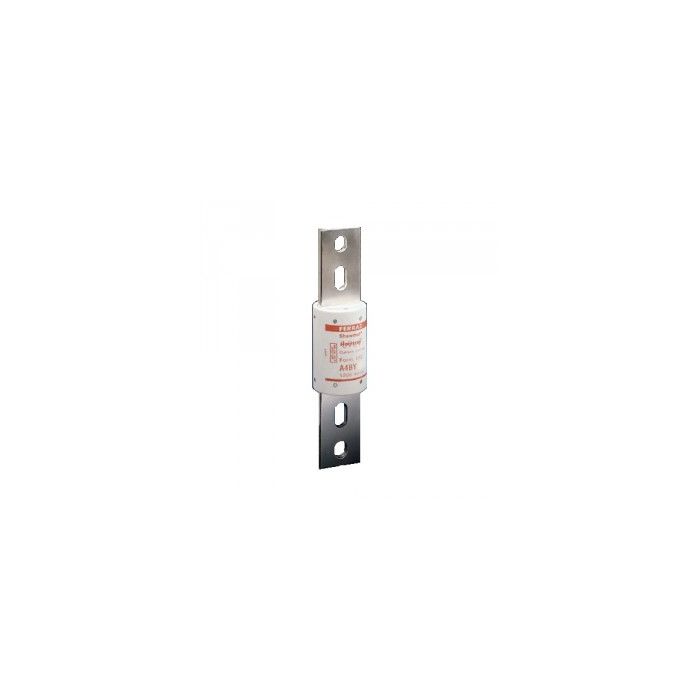

A4BT 1800 Amp, 600V, Class L, Ferraz A4BT1800, A4BT 1800A | aka: Mersen A4BT1800, Ferraz Shawmut A4BT1800, UPC: 782001939977
A4BT 1800 Amp, 600V, Class L, Ferraz A4BT1800, A4BT 1800A | aka: Mersen A4BT1800, Ferraz Shawmut A4BT1800, UPC: 782001939977
Description:
- 1800 Amps, 600 Volts AC
- UL Class L Fuse
- 10 Second Time Delay
- Current Limiting
- Physical Size: 3 1/2" x 10 3/4"
- AC Voltage Rating: 600
- DC Voltage Rating: 500
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Blade Stamped Catalog Numbers for Permanent Identification
- Unique Dimensions Prevent Replacement by Other Fuse Classes
- Glass Melamine Body and Plated Terminals for Harsh Environments
- UL Listed to standard 248-10 (601-2000A) File E2137
- CSA Certified to standard C22.2 No. 248.10 (601-2000A)
- Self-certified for DC per UL248 (601-2000)
