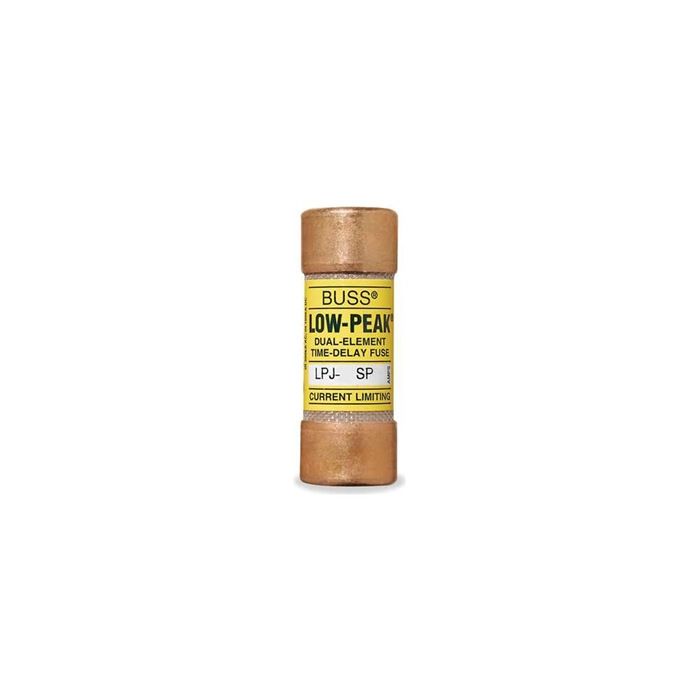

LPJ-3SP

Description:

• 3 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay - 10 Second (Minimum) at 500% Rating
• Dual Element
• Physical Size: 0.81" x 2.25"
• High Degree of Current Limitation
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, 200,000 AIR, Class J per CSA 22.2 No. 248.8
• Class 1422-02, File 53787
•

• Related Products:


• Ultrasafe Fuse Holders
• 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
• 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
• 3 Pole: US3J3; 3 Pole with Indicator:US3J3I


• Fuse Blocks
• Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
• 1 Pole: 60301J 3 Pole: 60303J
• Spring Reinforced, Box Lugs (Al/Cu #2-14)
• Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
• Non-Spring Reinforced, Screw (Cu #4-14)
• 3 Pole: 60313J
• Non-Spring Reinforced, Pressure Plate (Cu #4-14)
• 3 Pole: 60323J
• Spring Reinforced, Pressure Plate (Cu #4-14)
• 3 Pole: 60328SJ
• Spring Reinforced, Box Lugs (Cu #4-14)
• 3 Pole: 60358SJ


• Fuse Reducers
• 200 Amp to 30 Amp: J236
• 100 Amp to 30 Amp: J136
• 60 Amp to 30 Amp: J636
