JTD-002
$18.14
Stock Quantity:
174
SKU
JTD-002

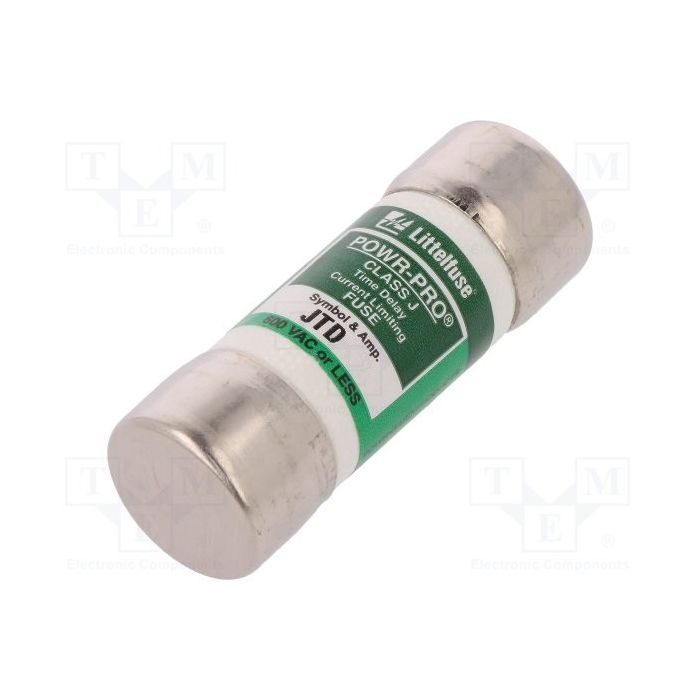

JTD 2 Amp, 600V, Class J, Littelfuse JTD-002, JTD 2A | aka: Time Delay JTD-002, Littel fuse JTD-002, UPC: 07945820203
JTD 2 Amp, 600V, Class J, Littelfuse JTD-002, JTD 2A | aka: Time Delay JTD-002, Littel fuse JTD-002, UPC: 07945820203
Description:
- 2 Amps, 600 Volts AC
- UL Class J Fuse
- Time Delay
- Dual Element
- Physical Size: 13/16" x 2 1/4"
- Current Limiting
- IEC Type 2 Protection
- AC Voltage Rating: 600
- DC Voltage Rating: 300
- Interrupting Rating: 200,000 AIC @ 600VAC
- DC Interrupting Rating: 20,000 AIC
- UL Listed (File: E81895) CSA Certified (File: LR29862)
- Related Products:
- Ultrasafe Fuse Holders
- 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
- 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
- 3 Pole: US3J3; 3 Pole with Indicator:US3J3I
- Fuse Blocks
- Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
- 1 Pole: 60301J 3 Pole: 60303J
- Spring Reinforced, Box Lugs (Al/Cu #2-14)
- Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
- Non-Spring Reinforced, Screw (Cu #4-14)
- 3 Pole: 60313J
- Non-Spring Reinforced, Pressure Plate (Cu #4-14)
- 3 Pole: 60323J
- Spring Reinforced, Pressure Plate (Cu #4-14)
- 3 Pole: 60328SJ
- Spring Reinforced, Box Lugs (Cu #4-14)
- 3 Pole: 60358SJ
- Fuse Reducers
- 200 Amp to 30 Amp: J236
- 100 Amp to 30 Amp: J136
- 60 Amp to 30 Amp: J636
Looking for equivalent products in different brands?
