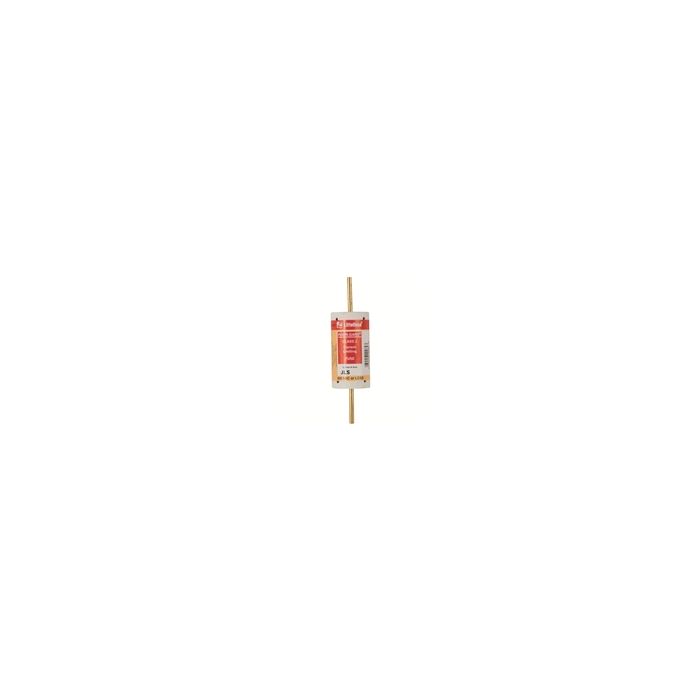

JLS-350

Description:

• 350 Amps, 600 Volts AC
• UL Class J Fuse
• Fast Acting
• Current Limiting
• Physical Size: 2" x 7 1/8"
• General Purpose Circuits with Little or No Motor Load
• Resistive Loads, Such as Resistance Electric Heat
• Loads Requiring Fast Acting Overload Protection
• AC Voltage Rating: 600
• Interrupting Rating: 200,000 AIC @ 600VAC
• UL Listed (File No. E81895)
• CSA Certified (File No. LR29862)
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
• 1 Pole: 64001J 3 Pole: 64003J
• Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
• 3 Pole: 64033J
• Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
• 3 Pole: 64063J


• Fuse Reducers
• 600 Amp to 400 Amp: J646
