AJT400

$144.39
Stock Quantity: 679
SKU
AJT400

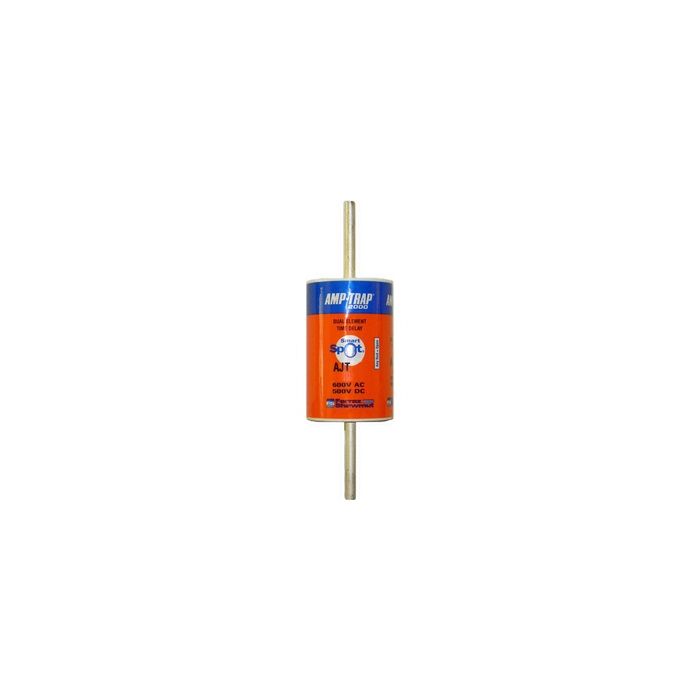

AJT 400 Amp, 600V, Class J, Ferraz AJT400, AJT 400A | aka: Mersen AJT400, Ferraz Shawmut AJT400, UPC: 782001962203
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

AJT 400 Amp, 600V, Class J, Ferraz AJT400, AJT 400A | aka: Mersen AJT400, Ferraz Shawmut AJT400, UPC: 782001962203


Description:

  • *Can also ship as newest equivalent version with -N part number suffix*
  • Ferraz/Mersen AJT400, AJT 400 Amp, 600V, Class J, AJT 400A, Time Delay | aka: Mersen AJT400, Ferraz Shawmut AJT400, UPC: 782001962203
  • 400 Amps, 600 Volts AC
  • UL Class J Fuse
  • Time Delay for Motor Starting and Transformer Inrush
  • Solid State SmartSpot Visual Blown Fuse Indicator
  • Extremely Current Limiting
  • Most Current Limiting UL Class Fuse
  • Recommended for Arc Flash Energy Reduction
  • Physical Size: 2 1/8" x 7 1/8"
  • Metal Embossed Date and Catalog Number for Lasting Identification
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • UL Listed to Standard 248-8 File E2137
  • DC Listed to UL Standard 248
  • CSA Certified to Standard C22.2 No. 248.8
  • IEC 269-2-1

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001J 3 Pole: 64003J
  • Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
  • 3 Pole: 64033J
  • Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
  • 3 Pole: 64063J

  • Fuse Reducers
  • 600 Amp to 400 Amp: J646
