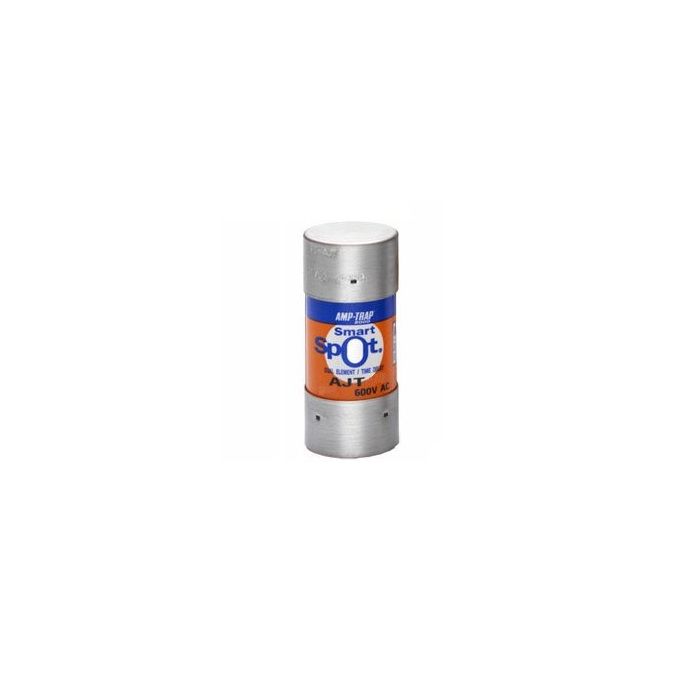

AJT35

Description:

• *Can also ship as newest equivalent version with -N part number suffix*
• Ferraz/Mersen AJT35, AJT 35 Amp, 600V, Class J, AJT 35A, Time Delay | aka: Mersen AJT35, Ferraz Shawmut AJT35, UPC: 782001962302
• 35 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay for Motor Starting and Transformer Inrush
• Solid State SmartSpot Visual Blown Fuse Indicator
• Extremely Current Limiting
• Most Current Limiting UL Class Fuse
• Recommended for Arc Flash Energy Reduction
• Physical Size: 1 1/16" x 2 3/8"
• Metal Embossed Date and Catalog Number for Lasting Identification
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard 248-8 File E2137
• DC Listed to UL Standard 248
• CSA Certified to Standard C22.2 No. 248.8
• IEC 269-2-1
•

• Related Products:


• Ultrasafe Fuse Holders
• 1 Pole: US6J1; 1 Pole with Indicator:US6J1I
• 2 Pole: US6J2; 2 Pole with Indicator:US6J2I
• 3 Pole: US6J3; 3 Pole with Indicator:US6J3I


• Fuse Blocks
• Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
• 2 Pole: 60602J 3 Pole: 60603J
• Spring Reinforced, Box Lugs (Al/Cu #2-14)
• Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
• Spring Reinforced, Box (Cu #4-14)
• 3 Pole: 60658J


• Fuse Reducers
• 200 Amp to 60 Amp: J266
• 100 Amp to 60 Amp: J166
