AJT225

Description:

• *Can also ship as newest equivalent version with -N part number suffix*

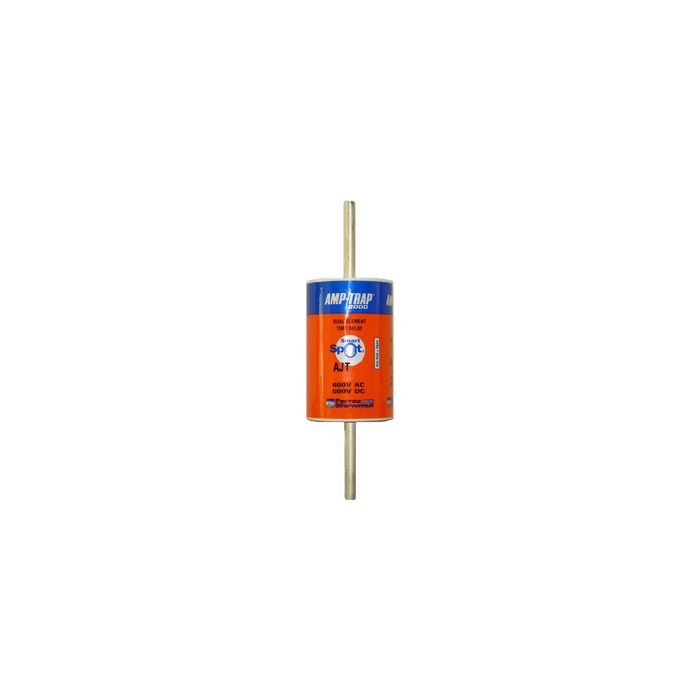

• Ferraz/Mersen AJT225, AJT 225 Amp, 600V, Class J, AJT 225A, Time Delay | aka: Mersen AJT225, Ferraz Shawmut AJT225, UPC: 782001962289
• 225 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay for Motor Starting and Transformer Inrush
• Solid State SmartSpot Visual Blown Fuse Indicator
• Extremely Current Limiting
• Most Current Limiting UL Class Fuse
• Recommended for Arc Flash Energy Reduction
• Physical Size: 2 1/8" x 7 1/8"
• Metal Embossed Date and Catalog Number for Lasting Identification
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard 248-8 File E2137
• DC Listed to UL Standard 248
• CSA Certified to Standard C22.2 No. 248.8
• IEC 269-2-1
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
• 1 Pole: 64001J 3 Pole: 64003J
• Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
• 3 Pole: 64033J
• Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
• 3 Pole: 64063J


• Fuse Reducers
• 600 Amp to 400 Amp: J646
