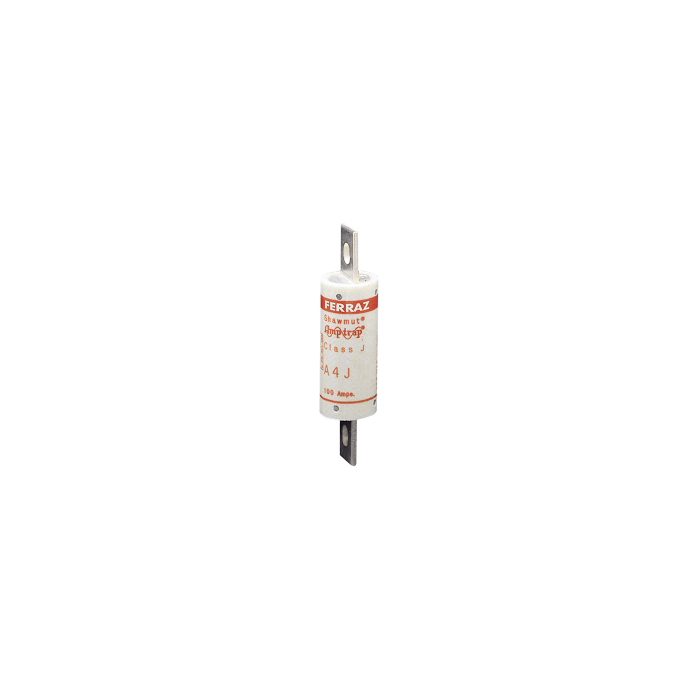

A4J80

Description:

• 80 Amps, 600 Volts AC
• UL Class J Fuse
• Fast Acting
• Very Current Limiting
• Physical Size: 1 1/8" x 4 1/2"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Easy to Read Imprint Label for Quick Recognition and Replacement
• UL listed to standard 248-8 File E2137
• CSA certified to standard C22.2 no. 248.8
• DC listed to UL 248
• IEC 269-2-1
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 2/0-#6)
• 3 Pole: 61008SJ
• Spring Reinforced, Box Lugs (Al/Cu 2/0-#6)
• 1 Pole: 61036J 2 Pole: 61037J 3 Pole: 61038J
• Spring Reinforced, Box (Cu 2/0-#12)
• 3 Pole: 61008J


• Fuse Reducers
• 600 Amp to 100 Amp: J616
• 400 Amp to 100 Amp: J416
• 200 Amp to 100 Amp: J216
