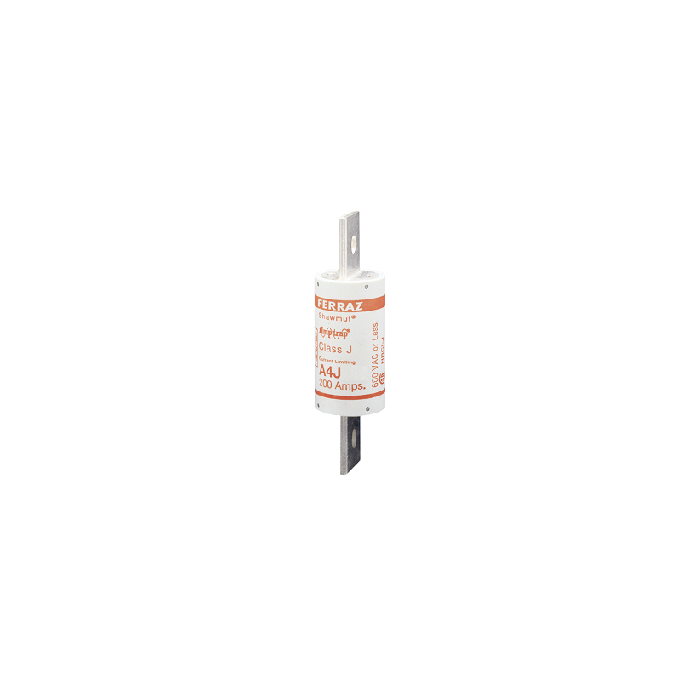

A4J300

Description:

• 300 Amps, 600 Volts AC
• UL Class J Fuse
• Fast Acting
• Very Current Limiting
• Physical Size: 2 1/8" x 7 1/8"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Easy to Read Imprint Label for Quick Recognition and Replacement
• UL listed to standard 248-8 File E2137
• CSA certified to standard C22.2 no. 248.8
• DC listed to UL 248
• IEC 269-2-1
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
• 1 Pole: 64001J 3 Pole: 64003J
• Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
• 3 Pole: 64033J
• Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
• 3 Pole: 64063J


• Fuse Reducers
• 600 Amp to 400 Amp: J646
