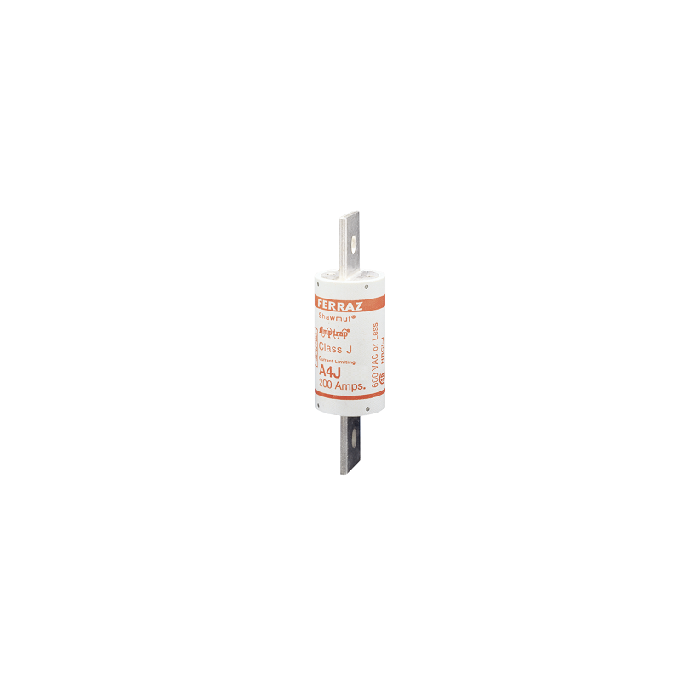

A4J125

Description:

• 125 Amps, 600 Volts AC
• UL Class J Fuse
• Fast Acting
• Very Current Limiting
• Physical Size: 1 5/8" x 5 3/4"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Easy to Read Imprint Label for Quick Recognition and Replacement
• UL listed to standard 248-8 File E2137
• CSA certified to standard C22.2 no. 248.8
• DC listed to UL 248
• IEC 269-2-1
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 350kcmil-#6)
• 1 Pole: 62001J 3 Pole: 62003J
• Spring Reinforced, Box Side Clip (Cu 350kcmil-#6)
• 3 Pole: 62053J


• Fuse Reducers
• 600 Amp to 200 Amp: J626
• 400 Amp to 200 Amp: J426
