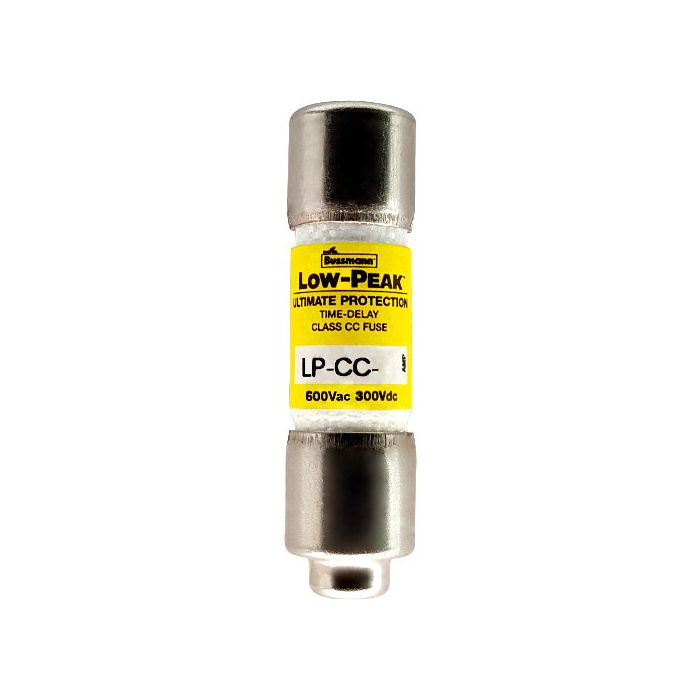

LP-CC-15

Description:

• LP-CC-15, LP CC 15A, 600V, Class CC, Bussmann
• UL Class CC Fuse
• Time Delay - 12 Second (Minimum)
• Dual Element
• Rejection Type
• Physical Size: 0.41" x 1.5"
• For Protection of Small Horsepower Motor Circuits
• Interrupting Rating: 200,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 20,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 150
• CE, Std. 248-4, Class CC, UL Listed
• Guide JDDZ, File E4273, CSA Certified
• Class 1422-02, File 53787
•

• Related Products:


• Ultrasafe Fuse Holders
• 1 Pole: USCC1; 1 Pole with Indicator:USCC1I
• 2 Pole: USCC2; 2 Pole with Indicator:USCC2I
• 3 Pole: USCC3; 3 Pole with Indicator:USCC3I
• 4 Pole: USCC4; 4 Pole with Indicator:USCC4I


• Fuse Blocks
• Screw with Double Quick Connects at Both Ends
• Adder: 30310R 1 Pole: 30311R 2 Pole: 30312R 3 Pole: 30313R
• Pressure Plate with Double Quick Connects at Both Ends
• Adder: 30320R 1 Pole: 30321r 2 Pole: 30322R 3 Pole: 30323R
• Copper Box Lugs
• Adder: 30350R 1 Pole: 30351R 2 Pole: 30352R 3 Pole: 30353R
