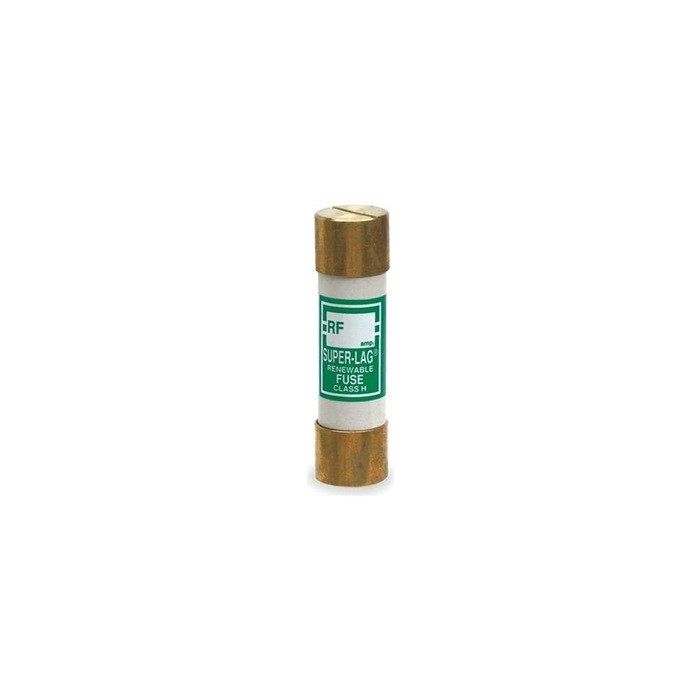

RF15

Description:

• 15 Amps, 250 Volts AC
• Renewable Fuses
• Class H
• Non-Current Limiting
• Equivalent to Buss REN Style
• Physical Size: 9/16" x 2"
• General Purpose Fuse
• Knurled Bushings for East of Disassembly
• Rugged Construction for Maximum Service Life
• 32 Renewable Link Ratings
• Interrupting Rating: 10,000 AIC @ 250VAC
• Precision Die-Cut Renewal Links
• Renew Quickly and Give Repeatable Performance
•

• Related Products:


• Fuse Blocks
• Non-Spring Reinforced Box Lugs (Al/Cu #2-14)
• Adder: 20300 1 Pole: 20301 2 Pole: 20302 3 Pole: 20303
• Spring Reinforced Box Lugs (Al/Cu #2-14)
• Adder: 20305 1 Pole: 20306 2 Pole: 20307 3 Pole: 20308
• Non-Spring Reinforced Screw Connector (Cu #10-14)
• 1 Pole: 20311 2 Pole: 20312 3 Pole: 20313
• Spring Reinforced Screw Connector (Cu #10-14)
• Adder: 20315 1 Pole: 20316 2 Pole: 20317 3 Pole: 20318
• Non-Spring Reinforced Pressure Plate (Cu #10-14)
• 1 Pole: 20321 2 Pole: 20322 3 Pole: 20323
• Spring Reinforced Pressure Plate (Cu #10-14)
• 1 Pole: 20326 2 Pole: 20327 3 Pole: 20328


• Fuse Reducers
• 60 Amp to 30 Amp: 632
• 100 Amp to 30 Amp: 132
