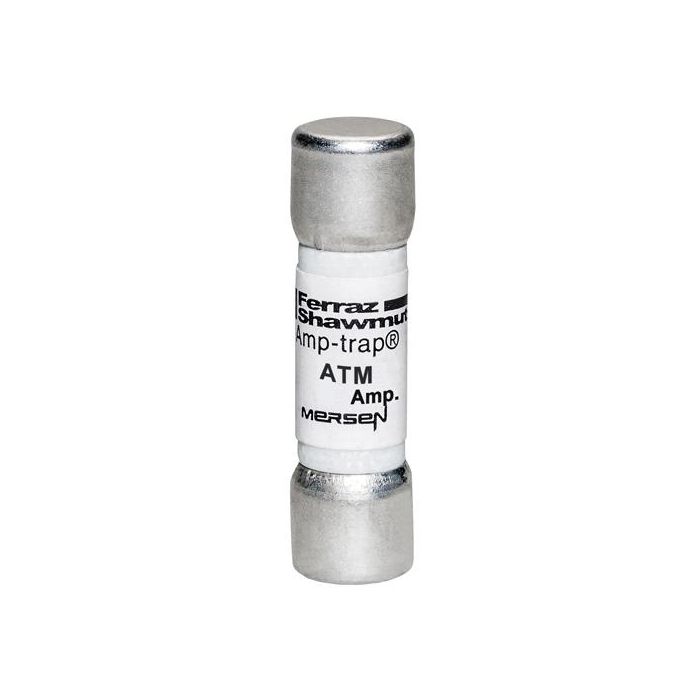

ATM20

Description:

• 20 Amps, 600 Volts AC / DC
• Midget Fuse
• Fast Acting
• For Supplemental Protection of Small Motors and Transformers
• Physical Size: 13/32" x 1 1/2"
• For Special Protection of Capacitors and Circuits with High Inrush Currents
• 600VDC Ratings for Wide Variety of Applications
• AC Voltage Rating: 600
• DC Voltage Rating: 600
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL listed to standard 248-14 File E33925
• DC Listed to UL Standard 248-14
• CSA Certified to Standard C22.2 No. 248.14
•

• Related Products:


• Ultrasafe Fuse Holders
• 1 Pole: USM1; 1 Pole with Indicator:USM1I
• 2 Pole: USM2; 2 Pole with Indicator:USM2I
• 3 Pole: USM3; 3 Pole with Indicator:USM3I
• 4 Pole: USM4; 4 Pole with Indicator:USM4I


• Fuse Blocks
• Screw with Double Quick Connects at Both Ends
• Adder: 30310 1 Pole: 30311 2 Pole: 30312 3 Pole: 30313
• Pressure Plate with Double Quick Connects at Both Ends
• Adder: 30320 1 Pole: 30321 2 Pole: 30322 3 Pole: 30323
• Copper Box Lugs
• Adder: 30350 1 Pole: 30351 2 Pole: 30352 3 Pole: 30353
