JTD-225ID
$208.84
Stock Quantity:
137
SKU
JTD-225ID

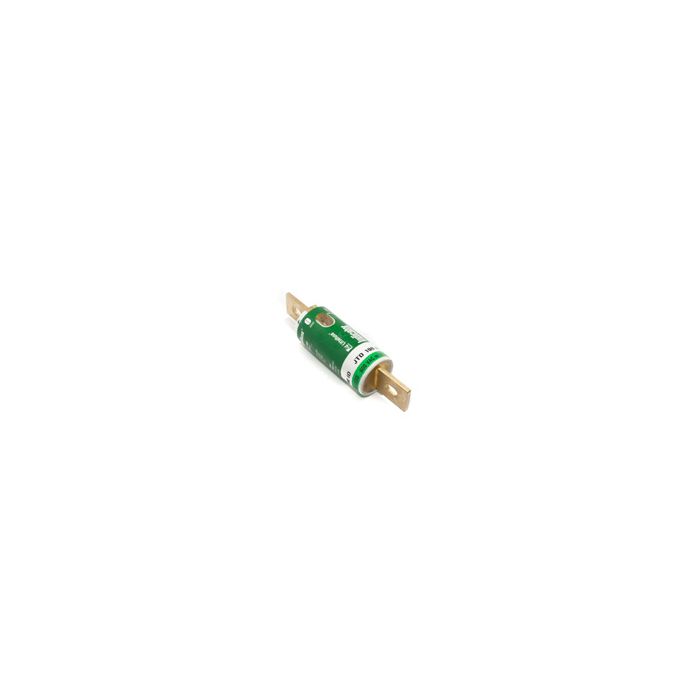

JTD 225 Amp, 600V, Class J, Littelfuse JTD-225ID, JTD 225A | aka: Time Delay JTD-225ID, Littel fuse JTD-225ID, UPC: 079458031867
JTD 225 Amp, 600V, Class J, Littelfuse JTD-225ID, JTD 225A | aka: Time Delay JTD-225ID, Littel fuse JTD-225ID, UPC: 079458031867
Description:
- 225 Amps, 600 Volts AC
- UL Class J Fuse w/ Indicator
- Time Delay
- Dual Element
- Physical Size: 2" x 7 1/8"
- Current Limiting
- IEC Type 2 Protection
- AC Voltage Rating: 600
- DC Voltage Rating: 500
- Interrupting Rating: 200,000 AIC @ 600VAC
- DC Interrupting Rating: 20,000 AIC
- UL Listed (File: E81895) CSA Certified (File: LR29862)
- Related Products:
- Fuse Blocks
- Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
- 1 Pole: 64001J 3 Pole: 64003J
- Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
- 3 Pole: 64033J
- Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
- 3 Pole: 64063J
- Fuse Reducers
- 600 Amp to 400 Amp: J646
