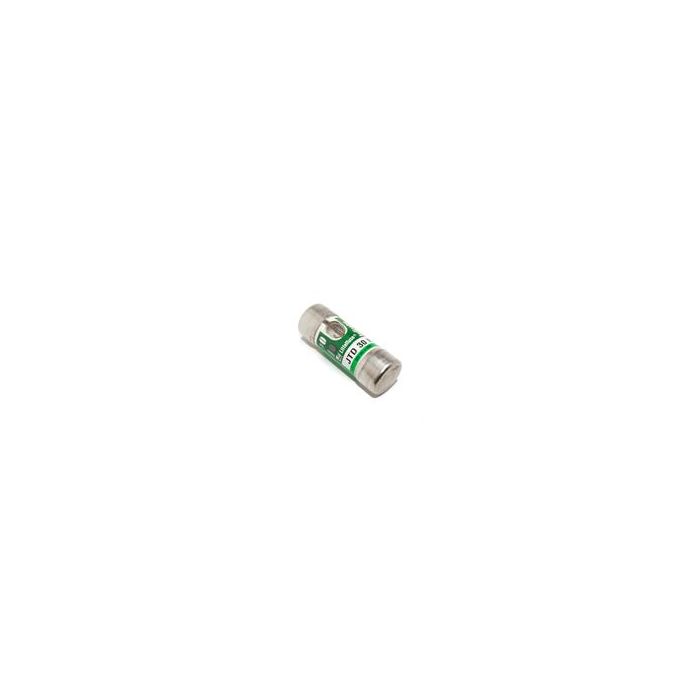

JTD-17.5ID

Description:

• 17 1/2 Amps, 600 Volts AC
• UL Class J Fuse w/ Indicator
• Time Delay
• Dual Element
• Physical Size: 13/16" x 2 1/4"
• Current Limiting
• IEC Type 2 Protection
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 200,000 AIC @ 600VAC
• DC Interrupting Rating: 20,000 AIC
• UL Listed (File: E81895) CSA Certified (File: LR29862)
•

• Related Products:


• Ultrasafe Fuse Holders
• 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
• 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
• 3 Pole: US3J3; 3 Pole with Indicator:US3J3I


• Fuse Blocks
• Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
• 1 Pole: 60301J 3 Pole: 60303J
• Spring Reinforced, Box Lugs (Al/Cu #2-14)
• Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
• Non-Spring Reinforced, Screw (Cu #4-14)
• 3 Pole: 60313J
• Non-Spring Reinforced, Pressure Plate (Cu #4-14)
• 3 Pole: 60323J
• Spring Reinforced, Pressure Plate (Cu #4-14)
• 3 Pole: 60328SJ
• Spring Reinforced, Box Lugs (Cu #4-14)
• 3 Pole: 60358SJ


• Fuse Reducers
• 200 Amp to 30 Amp: J236
• 100 Amp to 30 Amp: J136
• 60 Amp to 30 Amp: J636
