A6K20R
$27.49
Out of stock
SKU
A6K20R

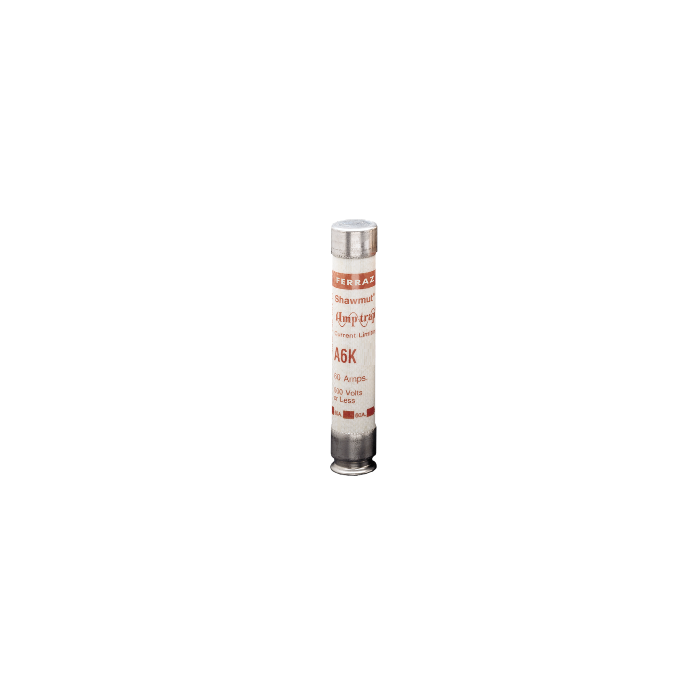

A6K 20 Amp, 600V, Class RK1, Ferraz A6K20R, A6K 20A | aka: Mersen A6K20R, Ferraz Shawmut A6K20R, UPC: 782001915582
A6K 20 Amp, 600V, Class RK1, Ferraz A6K20R, A6K 20A | aka: Mersen A6K20R, Ferraz Shawmut A6K20R, UPC: 782001915582
Description:
- 20 Amps, 600 Volts AC
- UL Class RK1 Fuse
- Fast Acting
- Interrupting Rating: 200kAIC
- Physical Size: 13/16" x 5"
- AC Voltage Rating: 600
- DC Voltage Rating: 300
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 20,000 AIC
- Easy to Read Imprint Label for Quick Recognition and Replacement
- Rejection Style Design Prevents Replacement Errors
- UL Listed to Standard 248-12; UL File E2137
- Self-Certified for DC per UL Standard 248
- CSA Certified to Standard C22.2 No. 248.12
- Related Products:
- Fuse Blocks
- Box Lugs (Al/Cu #2-14) 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
- Screw Connector (Cu #10-14) 3 Pole: 60318R
- Pressure Plate (Cu #10-14) 3 Pole: 60328R
- Fuse Reducers
- 60 Amp to 30 Amp: R636
- 100 Amp to 30 Amp: R162
