FXD62B070
$950.09
Stock Quantity:
1
SKU
FXD62B070
FXD 70 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B070, FXD 70A | aka: ITE FXD62B070, ITE Siemens FXD62B070, UPC: 783643211087
FXD 70 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B070, FXD 70A | aka: ITE FXD62B070, ITE Siemens FXD62B070, UPC: 783643211087
Description:

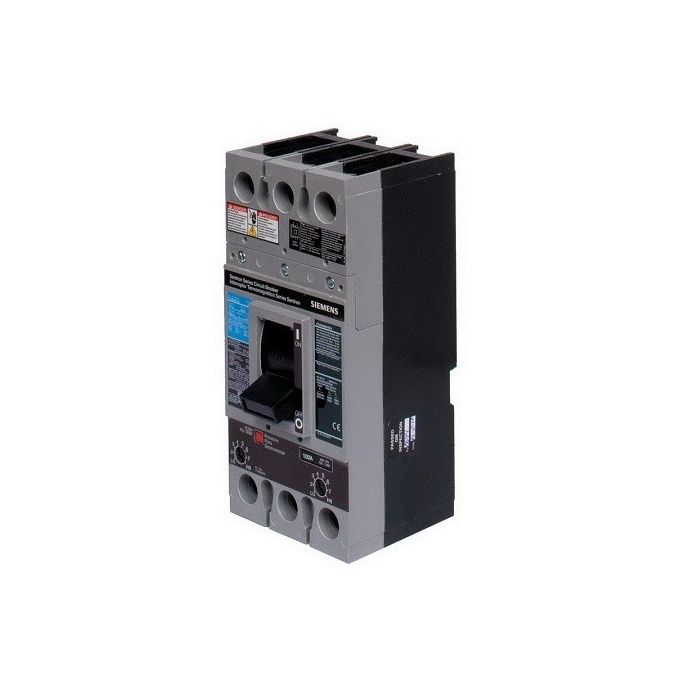

- Siemens FXD62B070, FXD 70 Amp, 600V, Circuit Breaker Trip Unit, FXD 70A | aka: ITE FXD62B070, ITE Siemens FXD62B070, UPC: 783643211087
- Bolt On Mounting
- Frame Type: FXD
- Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
- Weight: 9lbs.
- Wire Size: Lug Kit TA1FD350A (#6 AWG to 350 Kcmil)
- FXD, 70A, 600V AC, 2 Pole
- Interrupting Rating at 240 Volts AC: 65,000
- Interrupting Rating at 480 Volts AC: 35,000
- Interrupting Rating at 600 Volts AC: 22,000
- Thermal Magnetic
