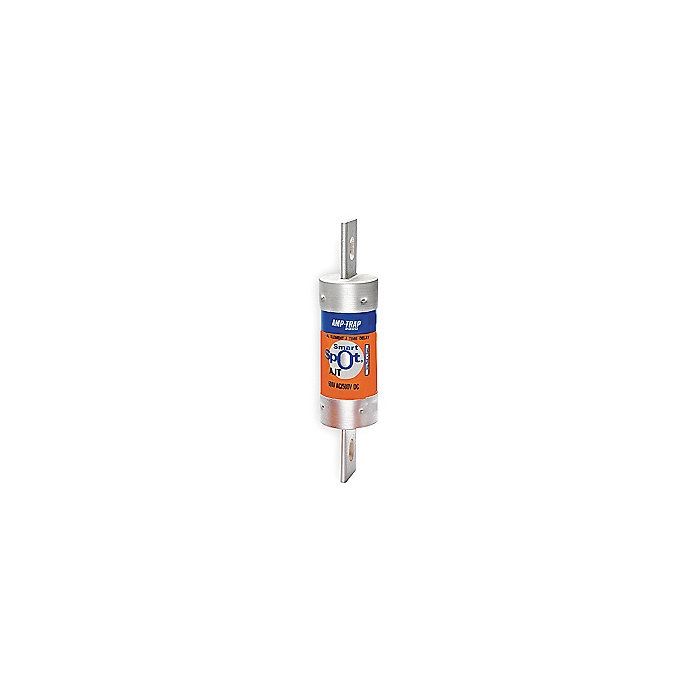

AJT150

Description:

• *Can also ship as newest equivalent version with -N part number suffix*
• Ferraz/Mersen AJT150, AJT 150 Amp, 600V, Class J, AJT 150A, Time Delay | aka: Mersen AJT150, Ferraz Shawmut AJT150, UPC: 782001962593
• 150 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay for Motor Starting and Transformer Inrush
• Solid State SmartSpot Visual Blown Fuse Indicator
• Extremely Current Limiting
• Most Current Limiting UL Class Fuse
• Recommended for Arc Flash Energy Reduction
• Physical Size: 1 5/8" x 5 3/4"
• Metal Embossed Date and Catalog Number for Lasting Identification
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard 248-8 File E2137
• DC Listed to UL Standard 248
• CSA Certified to Standard C22.2 No. 248.8
• IEC 269-2-1
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (Al/Cu 350kcmil-#6)
• 1 Pole: 62001J 3 Pole: 62003J
• Spring Reinforced, Box Side Clip (Cu 350kcmil-#6)
• 3 Pole: 62053J


• Fuse Reducers
• 600 Amp to 200 Amp: J626
• 400 Amp to 200 Amp: J426
