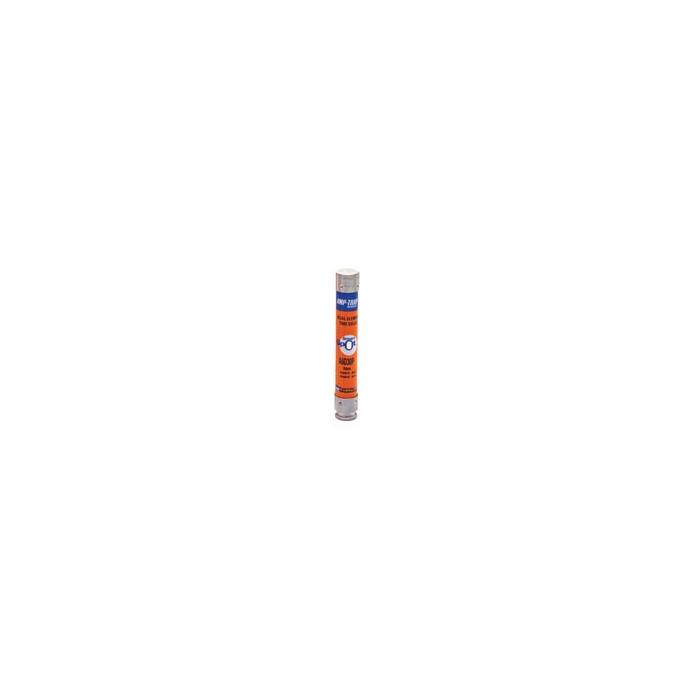

A6D1-8/10R
$21.39
Stock Quantity:
8
SKU
A6D1-8/10R
A6D 1 8/10 Amp, 600V, Class RK1, Ferraz A6D1-8/10R, A6D 1 8/10A | aka: Mersen A6D1-8/10R, Ferraz Shawmut A6D1-8/10R, UPC: 782001307875
A6D 1 8/10 Amp, 600V, Class RK1, Ferraz A6D1-8/10R, A6D 1 8/10A | aka: Mersen A6D1-8/10R, Ferraz Shawmut A6D1-8/10R, UPC: 782001307875
Description:
- 1 8/10 Amps, 600 Volts AC
- UL Class RK1 Fuse
- Time Delay
- Smart Spot
- Physical Size: 13/16" x 5"
- AC Voltage Rating: 600
- DC Voltage Rating: 600
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Recommended for Arc Flash Energy Reduction
- Rejection Style Design Prevents Replacement Errors
- UL Listed to Standard 248-12; UL File E2137
- DC Listed to UL Standard 248
- CSA Certified to Standard C22.2 No. 248.12
- Related Products:
- Fuse Blocks
- Box Lugs (Al/Cu #2-14) 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
- Screw Connector (Cu #10-14) 3 Pole: 60318R
- Pressure Plate (Cu #10-14) 3 Pole: 60328R
- Fuse Reducers
- 60 Amp to 30 Amp: R636
- 100 Amp to 30 Amp: R162
