A4BY601
$482.09
Stock Quantity:
5
SKU
A4BY601

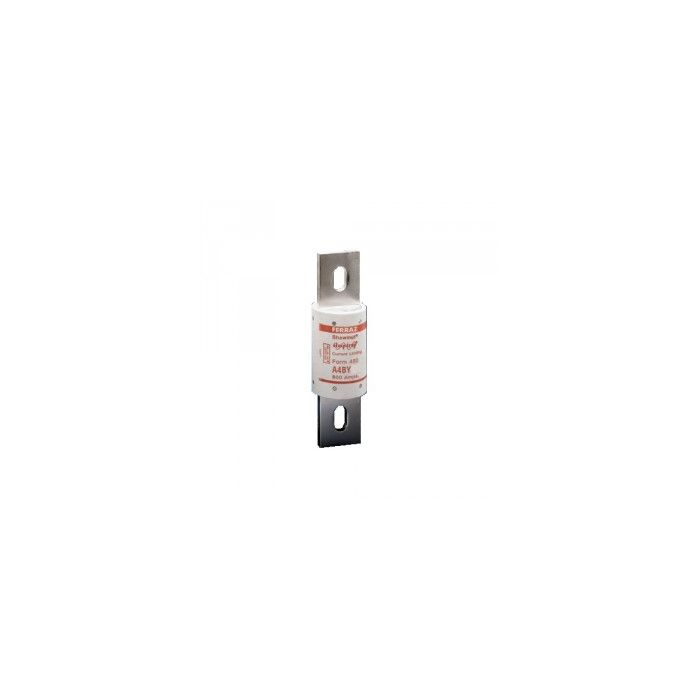

A4BY 601 Amp, 600V, Class L, Ferraz A4BY601, A4BY 601A | aka: Mersen A4BY601, Ferraz Shawmut A4BY601, UPC: 782001939076
A4BY 601 Amp, 600V, Class L, Ferraz A4BY601, A4BY 601A | aka: Mersen A4BY601, Ferraz Shawmut A4BY601, UPC: 782001939076
Description:
- 601 Amps, 600 Volts AC
- UL Class L Fuse
- 4 Second Time Delay
- Current Limiting
- Physical Size: 2 1/2" x 8 5/8"
- AC Voltage Rating: 600
- DC Voltage Rating: 300
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Blade Stamped Catalog Numbers for Permanent Identification
- Unique Dimensions Prevent Replacement by Other Fuse Classes
- Glass Melamine Body and Plated Terminals for Harsh Environments
- UL listed to standard 248-10 (601-6000A) File E2137
- CSA certified to standard C22.2 No. 248.10 (601-6000A)
- Self-certified for DC per UL248 (601-6000A)
