A4BQ5000
$1,954.84
Stock Quantity:
1
SKU
A4BQ5000

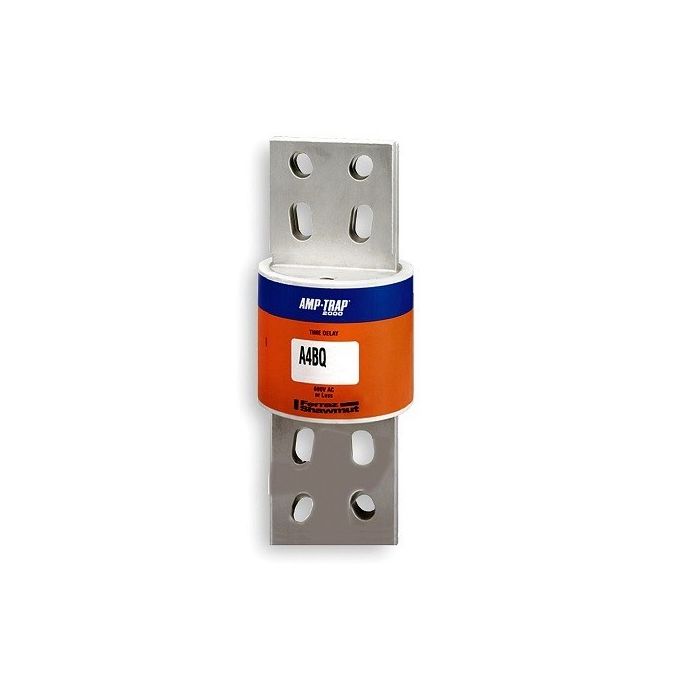

A4BQ 5000 Amp, 600V, Class L, Ferraz A4BQ5000, A4BQ 5000A | aka: Mersen A4BQ5000, Ferraz Shawmut A4BQ5000, UPC: 78200193019
A4BQ 5000 Amp, 600V, Class L, Ferraz A4BQ5000, A4BQ 5000A | aka: Mersen A4BQ5000, Ferraz Shawmut A4BQ5000, UPC: 78200193019
Description:
- 5000 Amps, 600 Volts AC
- UL Class L Fuse
- 4 Second Time Delay
- Current Limiting
- Physical Size: 5 3/4" x 10 3/4"
- AC Voltage Rating: 600
- DC Voltage Rating: 500
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- UL listed to standard 248-10 (601-6000A) File E2137
- DC listed to UL standard 248 (601-3000A)
- CSA certified to standard C22.2 No. 248.10 (601-6000A)
- UL recognized (100-600A)
- Purse Silver Elements
- Industry?s Most Current Limiting Class L Fuse
