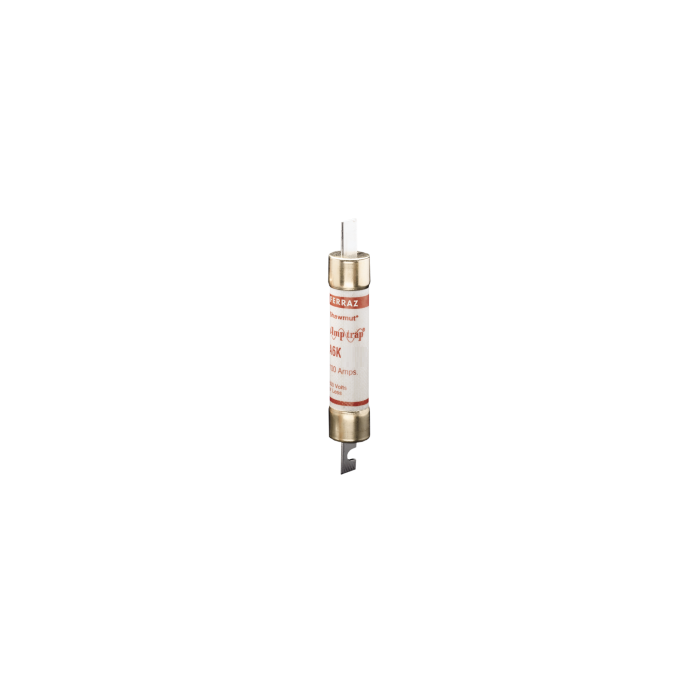

A2K90R

Description:

• 90 Amps, 250 Volts AC
• UL Class RK1 Fuse
• Fast Acting
• Interrupting Rating: 200kAIC
• Physical Size: 1 1/16" x 5 7/8"
• Current Limiting
• Rejection Style
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 20,000 AIC
• UL listed to standard 248-12 File E2137
• DC listed to UL standard 248
• CSA certified to standard C22.2 No. 248.12
•

• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu 2/0-#6)
• 1 Pole: 21036R 2 Pole: 21037R 3 Pole: 21038R


• Fuse Reducers
• 200 Amp to 100 Amp: R212
• 400 Amp to 100 Amp: R412
• 600 Amp to 100 Amp: R612
