HSJ15
$39.44
Stock Quantity:
195
SKU
HSJ15

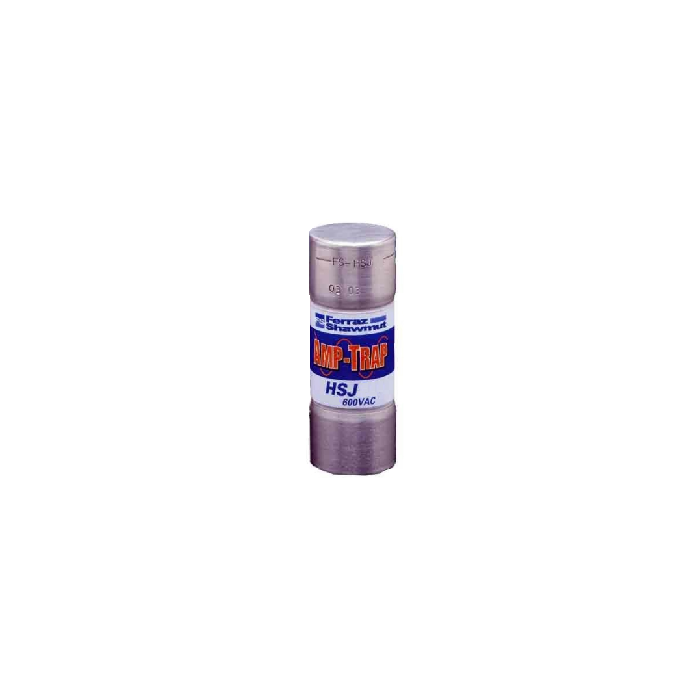

HSJ 15 Amp, 600V, Class J, Ferraz HSJ15, HSJ 15A | aka: Mersen HSJ15, Ferraz Shawmut HSJ15, UPC: 782001329464
HSJ 15 Amp, 600V, Class J, Ferraz HSJ15, HSJ 15A | aka: Mersen HSJ15, Ferraz Shawmut HSJ15, UPC: 782001329464
Description:
- 15 Amps, 600 Volts AC
- UL Class J Fuse
- High Speed J
- Designed for Solid State Motor Controllers
- Current Limiting
- Excellent Cycling Ability
- Compact Size
- Physical Size: 13/16" x 2 1/4"
- Designed for Protection of Power Semiconductors
- AC Voltage Rating: 600
- DC Voltage Rating: 500
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- UL Listed to Standard 248-8 File E2137
- DC Listed to UL Standard 248
- CSA Certified to Standard C22.2 No. 248.8
- Ultrasafe Fuse Holders
- 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
- 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
- 3 Pole: US3J3; 3 Pole with Indicator:US3J3I
- Fuse Blocks
- Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
- 1 Pole: 60301J 3 Pole: 60303J
- Spring Reinforced, Box Lugs (Al/Cu #2-14)
- Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
- Non-Spring Reinforced, Screw (Cu #4-14)
- 3 Pole: 60313J
- Non-Spring Reinforced, Pressure Plate (Cu #4-14)
- 3 Pole: 60323J
- Spring Reinforced, Pressure Plate (Cu #4-14)
- 3 Pole: 60328SJ
- Spring Reinforced, Box Lugs (Cu #4-14)
- 3 Pole: 60358SJ
- Fuse Reducers
- 200 Amp to 30 Amp: J236
- 100 Amp to 30 Amp: J136
- 60 Amp to 30 Amp: J636
