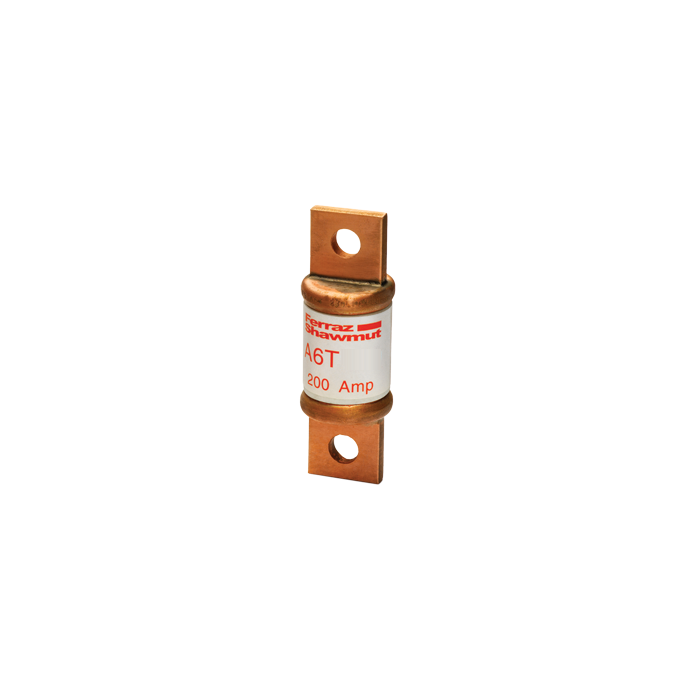

A6T80

Description:

• 80 Amps, 600 Volts AC
• UL Class T Fuse
• Fast Acting
• Extremely Current Limiting
• Physical Size: 0.82" x 2.95"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Unique Dimensions Prevent Replacement by Other Fuse Classes
• Blade Stamped Catalog Numbers for Permanent Identification
• Small Physical Size for Greater Design Flexibility
• UL Listed to Standard 248-15; UL File E2137
• CSA Certified to Standard C22.2 No. 248.15
• DC Listed to UL Standard 248


• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu 2/0 -#6)
• 1 Pole: 61031T 2 Pole: 61032T 3 Pole: 61033T
